CAM KT RACE 592 M8 17+OIL

592 Race Series® Camchest Kit

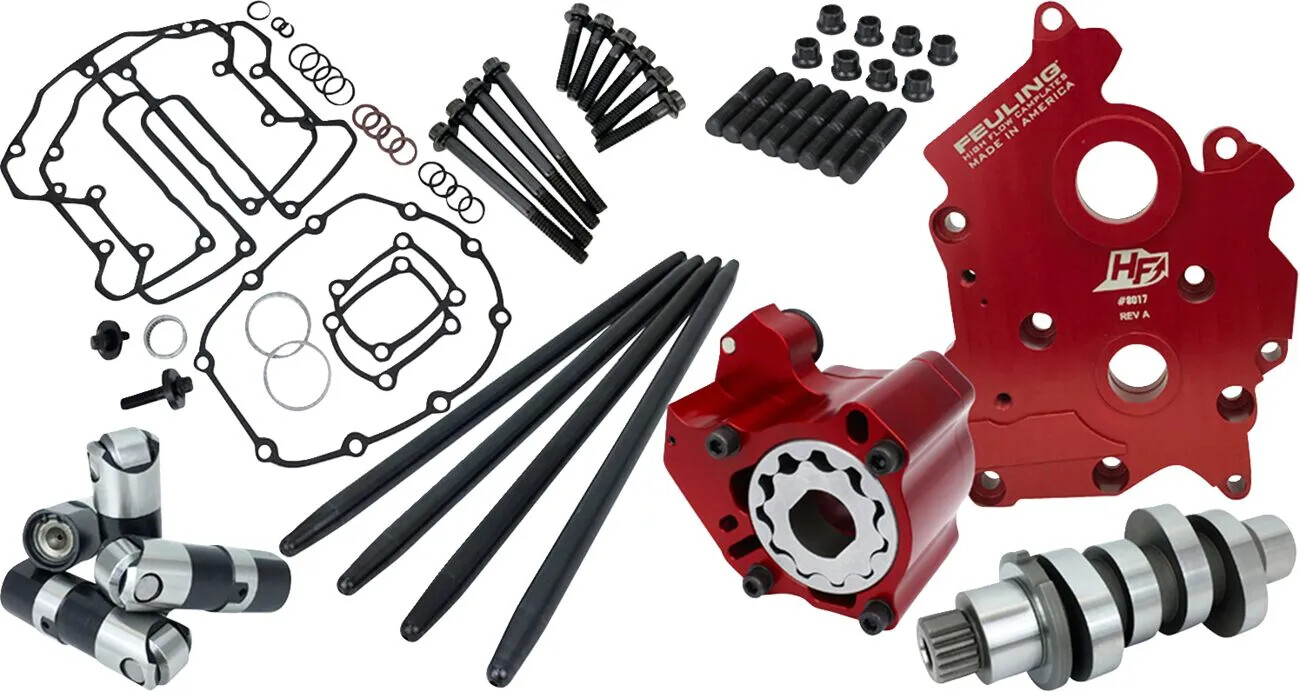

• Kit includes Race Series oiling system: billet 7075 oil pump, Race Series lifters and High Flow billet aluminum camplate
• Oil pump is 50% harder and stronger than the factory pump, holds tighter tolerances under temperature
• Race Series hydraulic lifters have a full .200” of total travel designed with slower bleed-down rate to handle heavy valve spring pressures, increase engine rpm before valve float and feature increased roller clearance for steep-ramped camshafts and clearance for the M-Eight front exhaust camshaft lobe flange
• Quieter and smoother engine operation
• Increase oil pressure, scavenge volume and engine oil flow
• 15-25 degree cooler engine temperatures
• 15-30 degree cooler oil temperatures
• 10-30 more PSI of oil pressure
• Eliminate wet sumping, blow by and oily air cleaners
• Heavy duty .165” wall one-piece pushrods reduce valvetrain harmonics and increase valve lift
• High-flow air cleaner and triple-stepped exhaust pipe highly recommended
• High-lift high-load valve springs are required
• RPM range 2850-6250

Provide 27% more pressure and scavenge gear volume

EXHAUST DURATION	264°
EXHAUST LIFT	0.592"
INTAKE DURATION	234°
INTAKE LIFT	0.578"
MODEL	Race Series®
APPLICATION	Exhaust| Intake
EXHAUST CLOSE	16°
EXHAUST OPEN	68°
INTAKE CLOSE	34°
INTAKE OPEN	20°
FEATURES	Oil Cooled
TYPE	Chain
UNITS	Kit
PRODUCT NAME	Camchest Kit
GRIND	592 Series
EXHAUST LOBE CENTERLINE	116°
INTAKE LOBE CENTERLINE	97°
EXHAUST LIFT IMPERIAL	0.592"
EXHAUST OPEN IMPERIAL	68°
INTAKE DURATION IMPERIAL	234°
INTAKE OPEN IMPERIAL	20°
INTAKE CLOSE IMPERIAL	34°
INTAKE LIFT IMPERIAL	0.578"
EXHAUST DURATION IMPERIAL	264°
EXHAUST CLOSE IMPERIAL	16°
EXHAUST LOBE CENTERLINE IMPERIAL	116°
INTAKE LOBE CENTERLINE IMPERIAL	97°
