CAMS CHN DR 585C 07-14BT

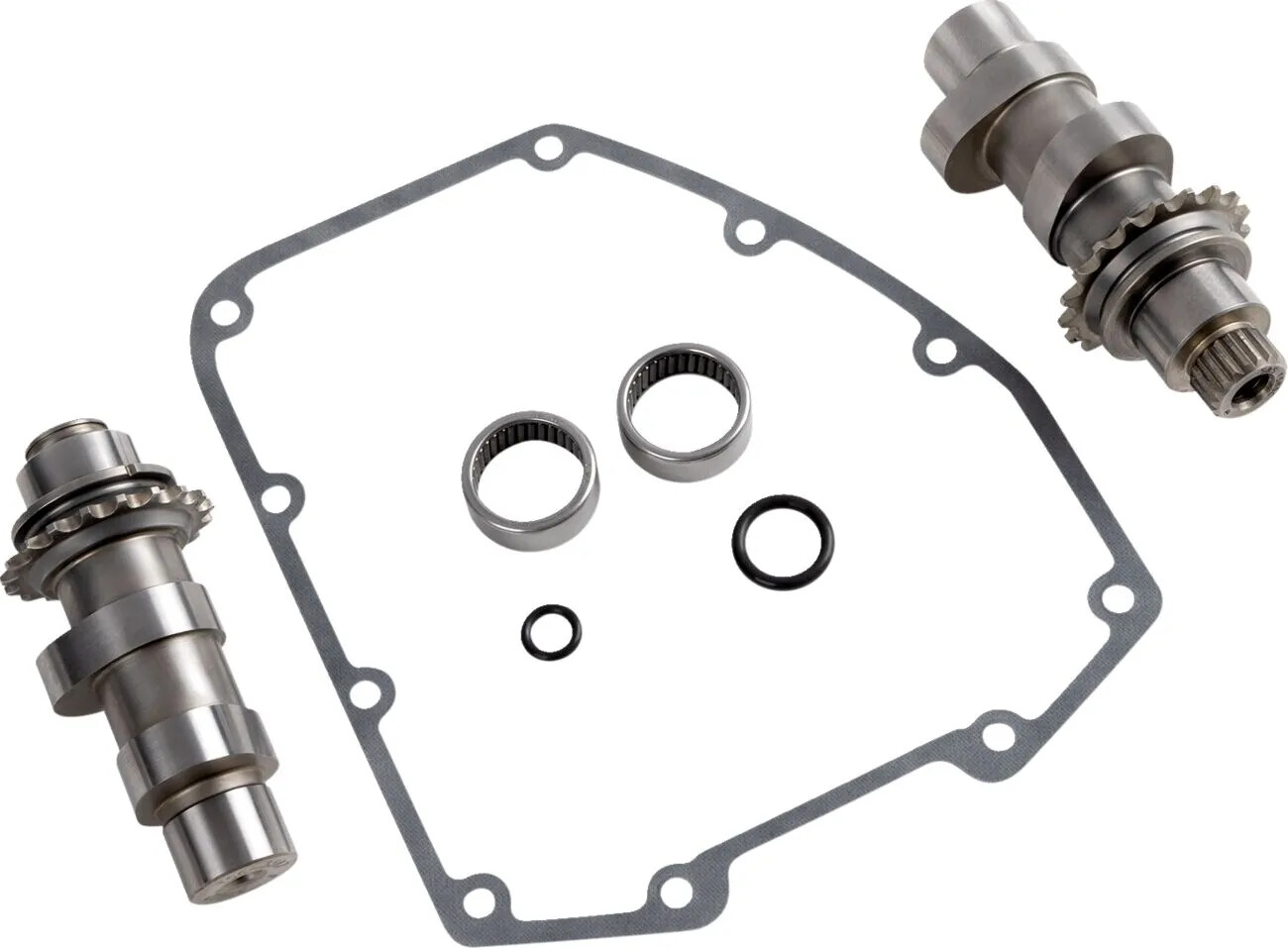

585 Cam Kit

• Strongest from 3500-6000 rpm

585C chain drive cams are designed for 88" to 107" engines with compression ratios from 10 to 10.5:1 and 100" and 107" engines with ratios 9.7:1 to 10.5:1

EXHAUST DURATION	260°
EXHAUST LIFT	0,585"
INTAKE DURATION	245°
INTAKE LIFT	0,585"
APPLICATION	Exhaust| Intake
EXHAUST CLOSE	20°
EXHAUST OPEN	60°
INTAKE CLOSE	45°
INTAKE OPEN	20°
TYPE	Chain
UNITS	Kit
PRODUCT NAME	Cam Kit
EXHAUST LIFT AT TDC	0,179"
GRIND	585 Series
EXHAUST LOBE CENTERLINE	110°
INTAKE LOBE CENTERLINE	102,5°
INTAKE LIFT AT TDC	0,186"
EXHAUST LIFT IMPERIAL	0.585"
INTAKE LIFT AT TDC IMPERIAL	0.186"
EXHAUST OPEN IMPERIAL	60°
EXHAUST LIFT AT TDC IMPERIAL	0.179"
INTAKE DURATION IMPERIAL	245°
INTAKE OPEN IMPERIAL	20°
INTAKE CLOSE IMPERIAL	45°
INTAKE LIFT IMPERIAL	0.585"
EXHAUST DURATION IMPERIAL	260°
EXHAUST CLOSE IMPERIAL	20°
EXHAUST LOBE CENTERLINE IMPERIAL	110°
INTAKE LOBE CENTERLINE IMPERIAL	102.5°
