CAMS W/GEARS 510G 07-14BT

510 Cam Kit

• Camshaft gear drive kits increase valve timing accuracy in Twin Cam engines by eliminating timing chain lash and loosely fit stock chain drive
• Reverses the rear cam's direction of rotation, providing additional operating clearance between cam lobes; as a result, higher cam lifts are possible with the gear drive kit

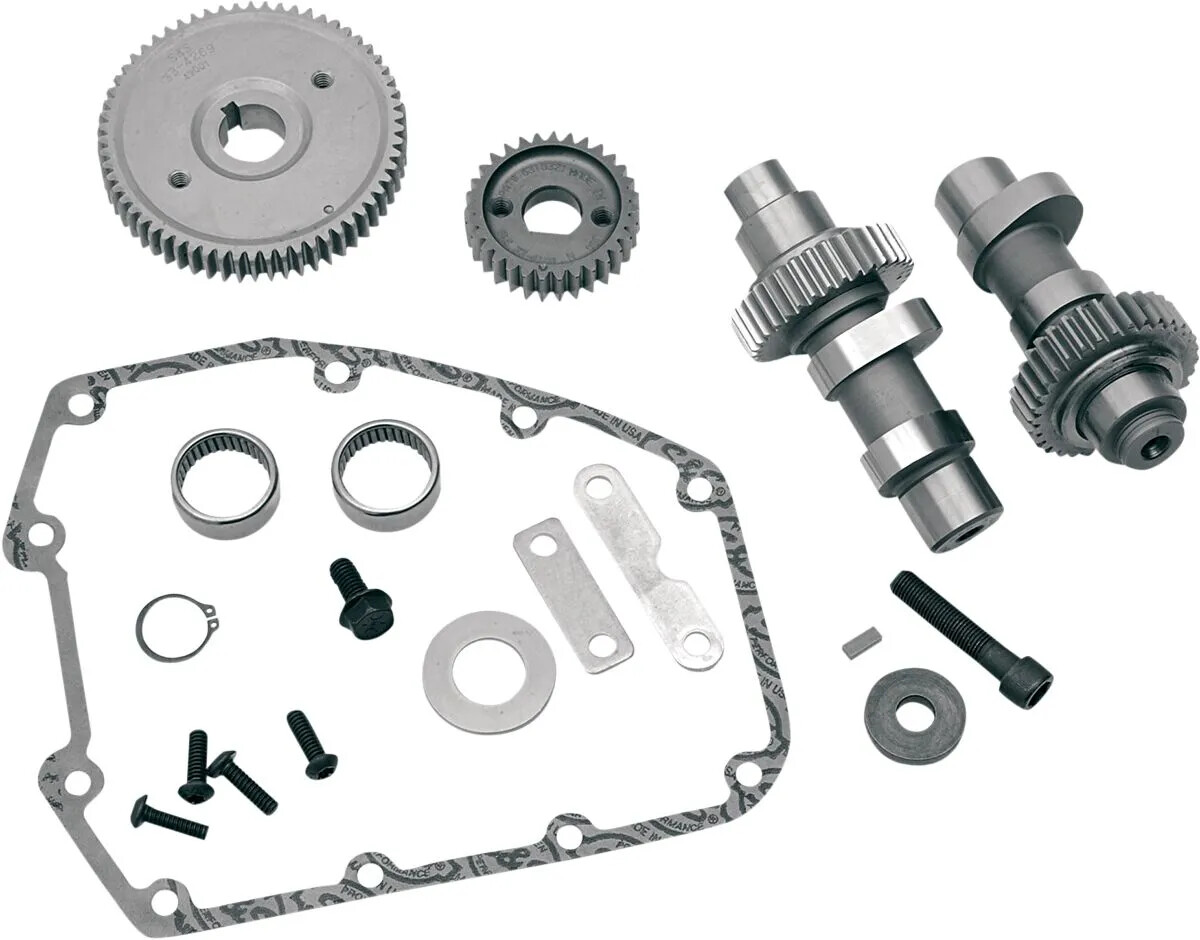

• Kits include cams, inner gears, outer drive gears, inner and outer bearings, gasket and instructions
• Material must be removed from the inner surface of the stock gear cover to install S&S gear drive cams
• A hydraulic press and other professional-level tools are required to install these kits
• Cam bearings and gaskets must be replaced when installing new cams
• Strongest from 3000-5000RPM
• Made in the U.S.A.
• Includes 1 Pinion Gear, 1 Outer Cam Gear, 1 Side Plate, (1) 5/16 in.-18 x 3/4 in. Flange Bolt, (4) 1/4 in.-20 x 3/4 in. Button Head Bolts, (1) 3/8 in. Flat Washer, 1 Thrust Washer, 1 Retaining Ring, 1 Key, 1 Cam Cover Gasket, 1 Rear Camshaft, 1 Front Camshaft, 2 Needle Bearings, (1) 3/8 in.-24 x 1-3/4 in. Socket Head Bolt
