Lenksud Biltwell Tracker O/S

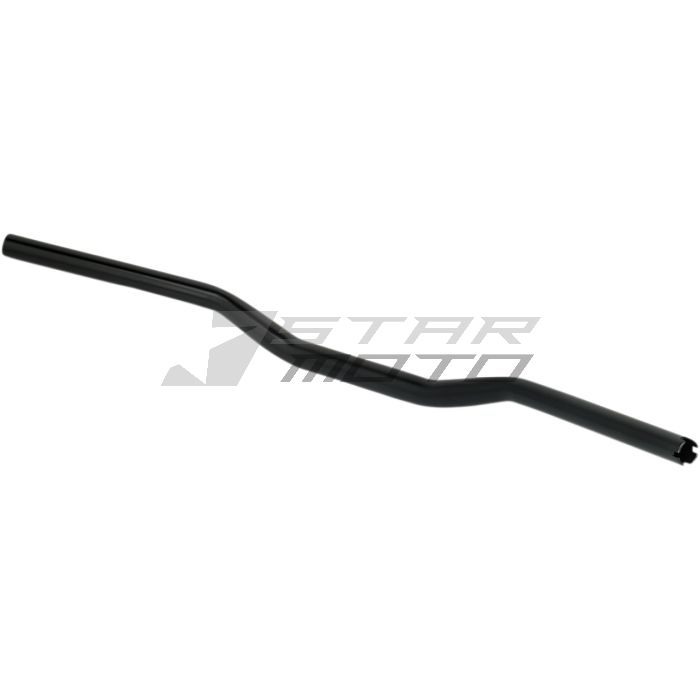

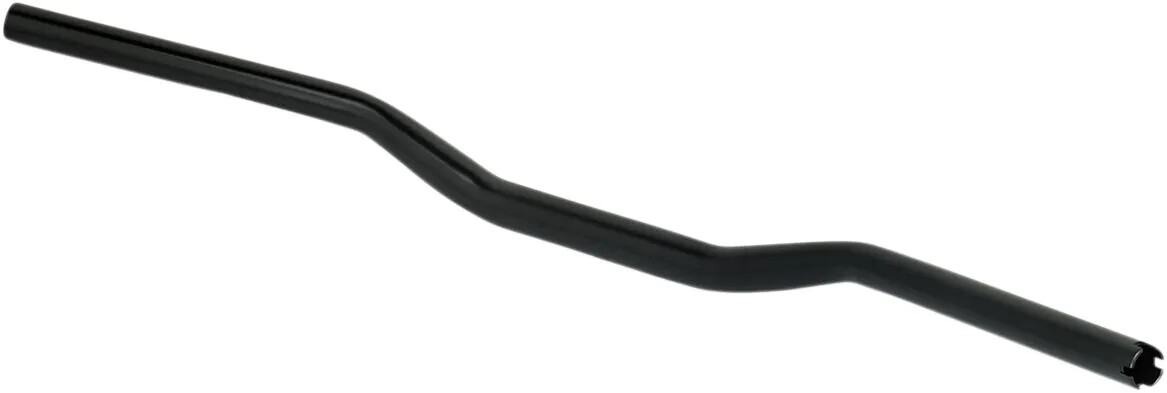

Tracker O/S Handlebar

• Manufactured from 1" OD x 0.120” wall seamless 4130 chromoly tubing
• All bends are created with internal mandrels on a CNC bender to reduce flat spots in the bends
• All welded joints are precision mitered and TIG welded
• If grip sets aren't installed, bars will be 1-1/8" shorter than listed
• These bars will not mount to normal 1” clamps found on the majority of stock and aftermarket risers

1-1/8" OD center section that tapers to 1" OD at grip ends

CENTER WIDTH	12,5 cm (5")
COLOR/FINISH	Black
MATERIAL	Chromoly
PULLBACK/SWEEP	63,5 mm (2-1/2")
WIDTH	77,5 cm (30-1/2")
HEIGHT	57,2 mm (2-1/4")
END RISE	44,5 mm (1-3/4")
FEATURES	Notched for Throttle-By-Wire| Smooth, Unknurled
RISE	57,2 mm (2-1/4")
HANDLEBAR DIAMETER	28,6 mm (1-1/8")
TYPE/BEND	Tracker O/S
UNITS	Each
CLAMPING DIAMETER	28,6 mm (1-1/8")
CONTROLS DIAMETER	25,4 mm (1")
PRODUCT NAME	Handlebar
BASE COLOR	Black
