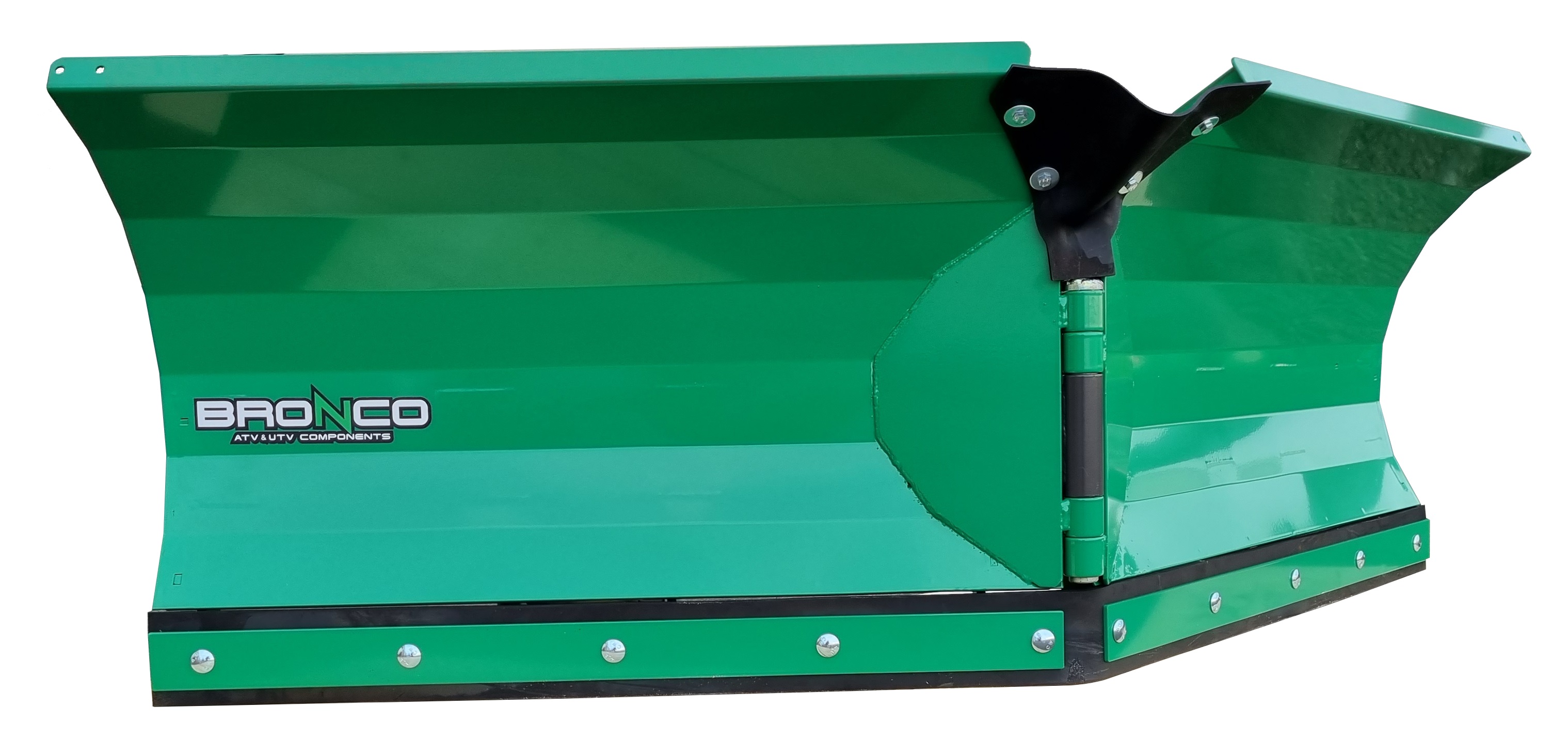

Bronco V-Plow 160-E

Bronco V-Plow 160-E

A professional Heavy Duty Made-in-Sweden snow plow for ATV/ UTV

Bump absorbing wear bars with torsion element. Rubber equipped wear bar as standard for a smooth and silent plowing on gravel, cobblestone, and other sensitive surfaces.

Adjustable skid shoes.

The blades are angled with the help of two powerful 12V, IP65 rated actuators from the mining industry. Each actuator moves approx. 225kg when in motion and holds its position under a 1,1 ton loading.

Measures V-plow:

Straight position:\t160cm

Fully angled:\t\t146cm

Width V-shape:\t154cm

?Bucket? position:\t150cm

Height:\t\t52cm

Spec. Actuator

Max dynamic load: 2250 N

Max static load: 11350 N

Speed, unloaded: 30 mm/s

Speed, max load: 18 mm/s

Classification: IP 65

12 VDC, 28 A

Overload Clutch.

Pantone code RAL 6024

For a complete V-plow kit you need:

75-804800\tBronco V-Plow 160-E

75-804801\tBronco Adaptor plate

You will also need a Kimpex Click N Go or Bronco push frame and a model specific mount plate.

See  ATV catalog or the web for your part number.

Bronco V-Plow 160-E

A professional Heavy Duty Made-in-Sweden snow plow for ATV/ UTV

Pallet shipping cost will be added. Some assembly necessary
