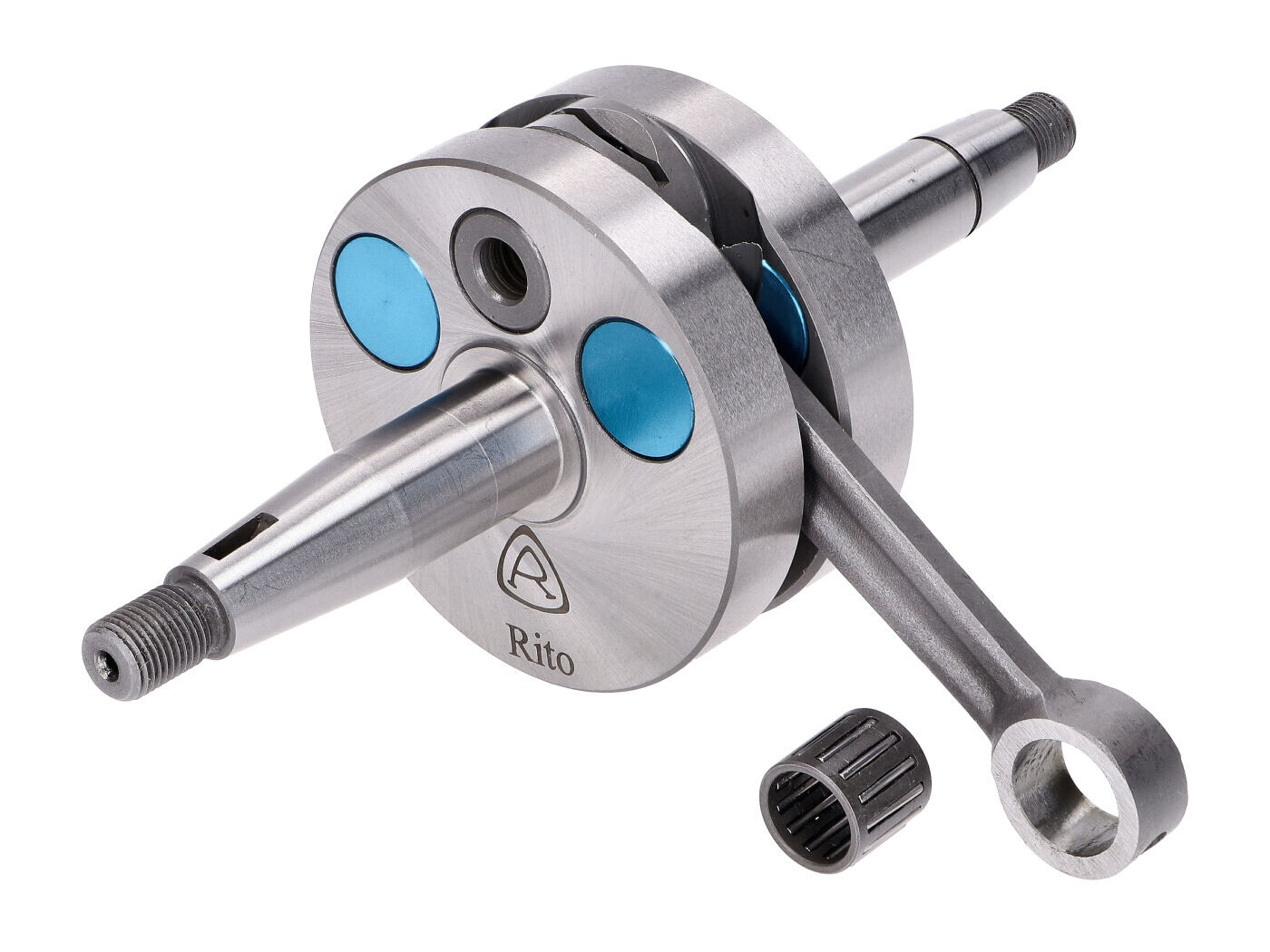

Full circle crankshaft from the quality brand Rito including needle bearing suitable for Puch Maxi with E50 engine (old type) with 12mm piston pin.
The full circle design with the blue anodized aluminium sleeves provides better pre-compression. Due to the lubrication slots on the connecting rod bearing, the crankshaft is also suitable for high revs.
Suitable accessories:
The "old type" crankcases have an enlarged oil seal seat on the clutch side.
Scope of delivery as shown on the product picture.
The full circle design with the blue anodized aluminium sleeves provides better pre-compression. Due to the lubrication slots on the connecting rod bearing, the crankshaft is also suitable for high revs.
Suitable accessories:
- Bearing for clutch side: 6203 NR with 12mm inner ring
- Bearing for ignition side: 6203 C3
- Shaft seal set: 17x40x7 (left) and 22x40x7 (right)
The "old type" crankcases have an enlarged oil seal seat on the clutch side.
Scope of delivery as shown on the product picture.
