CNC-machined 16mm tuning intake manifold made from silver-coloured anodized aluminium to fit Sachs 502, 50/2, 50/3 and 50/4 mopeds. The intake flange is compatible with slotted 38mm or 41mm swiing aluminium cylinders.
To increase power, a Dellorto SHA carburettor would be ideal. In order for the race carb to fit correctly, it should be mounted with a 90° pipe bend for the throttle cable, depending on the frame type.

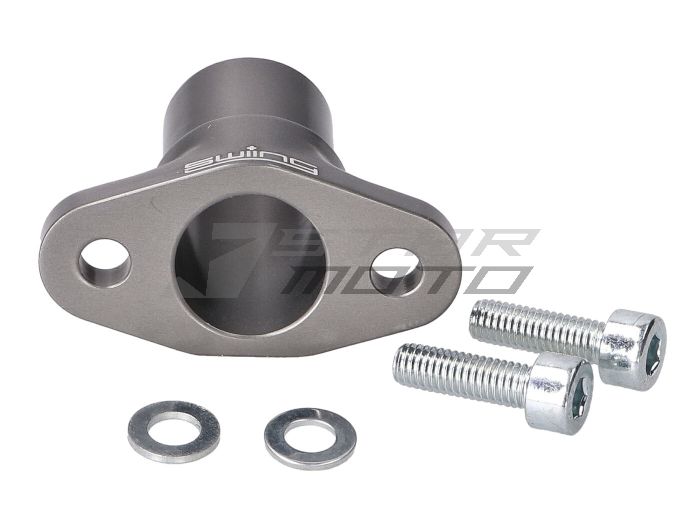

Scope of delivery as shown on the product picture. A 16mm swiing tuning intake manifold including mounting screws is supplied.
To increase power, a Dellorto SHA carburettor would be ideal. In order for the race carb to fit correctly, it should be mounted with a 90° pipe bend for the throttle cable, depending on the frame type.
- Inner diameter: 16mm
- Carburettor connection diameter: 19mm
- Mounting holes diameter: 5.5mm
- Hole distance: 31mm
Scope of delivery as shown on the product picture. A 16mm swiing tuning intake manifold including mounting screws is supplied.
