SEALED connectors are sealed and therefore offer a very high protection against water, dirt and dust (class IP67). They are perfectly suited for use in areas where temperature, water, oil and gasoline resistance is critical. Smaller than the conventional sealed connectors used, the types offered here are perfectly suited for wiring the on-board electronics of two-wheelers reliably and permanently protected.
We always offer the connectors as a pair, i.e. "male" and "female" in a set.
They are available with 2, 3, 4 and 6 plug contacts.
TIP: For optimum contact and tensile strength, the contacts should be processed with crimping pliers (see accessories).
Properties:
- waterproof to IP 67
- max. 13A
- max. 24V DC
- -40°C to +120°C
Resistant to:
- ozone, salts, petrol, diesel, brake fluid and engine oil

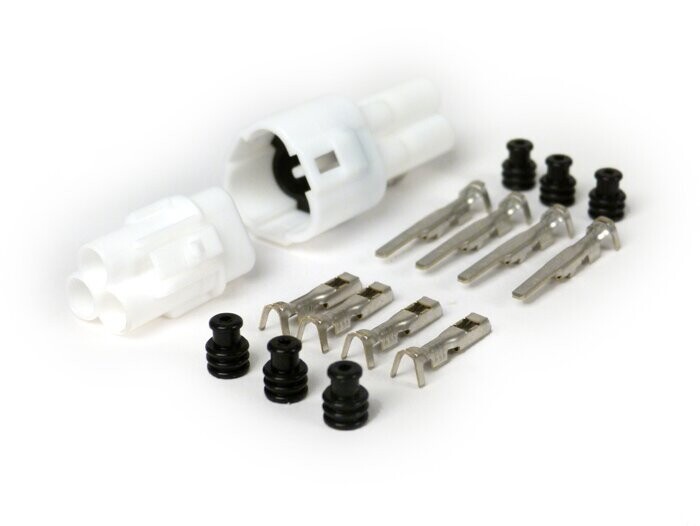

scope of delivery:
- 1x socket housing 6-pole
- 1x pin housing 6-pole
- 4x socket contact 0.55-1.25mm²
- 4x pin contact 0.55-1.25mm²
- 6x single-wire seal for outside diameter 1.7-2.7mm
Note: The sets always contain one more plug contact than required for the respective connector. This way you always have a reserve and can crimp a cable again if necessary.
