Schmitt Premium cables are manufactured true to the original in Austria: Absolutely accurate fit and handmade in the highest quality. Fast machine manufacturing processes to save costs are deliberately not used here.
The inner cables are made from special cable steel (and not from the today mostly used brittle stainless steel). Therefore, the Schmitt Premium cables do not break as quickly as those from mass production.
Schmitt cables for classic vehicles are manufactured in the same design as it was standard at the time of production of the vehicles. Thus, for all fans of classic vehicles, a cable true to the original is used here. Since an inner cable manufactured in the old way tends to rust, it is lubricated with an Interflon high-performance fluid grease for life.
OEM number for comparison purposes only: 910.8.04.001.2

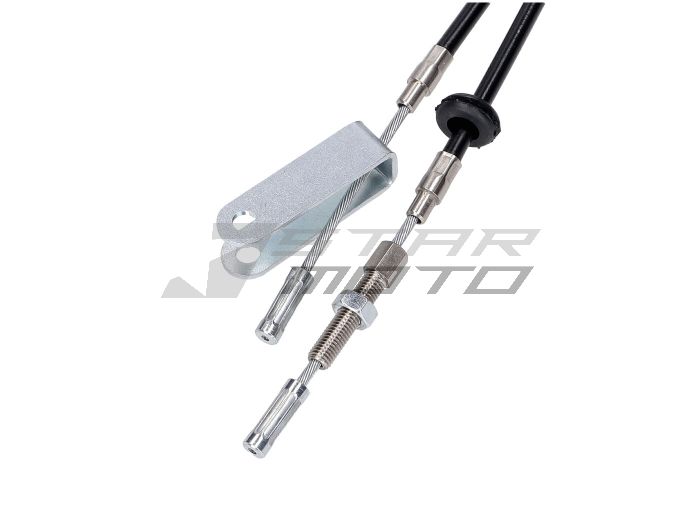

Dimensions:
Overall length: 78cm Sheath length (incl. caps): 61cm Stranded wire diameter: 3mm Sheath diameter: 6mm
End cap length: 21.5mm End cap diameter: 6-8mm
Nipple diameter: 7mm Nipple length: 22mm
Clevis length: 55mmn, Width: 15mm Width (bore hole to bore hole): 17mm Bore hole diameter: 6.5mm
Threaded bolt length (w/ hexagonal adjusting screw): 40mm Thread length: 29mm Nut: M7
Rubber grommet: 6mm Outer diameter: 18mm Inner diameter: 10mm Thickness: 6.5mm
The inner cables are made from special cable steel (and not from the today mostly used brittle stainless steel). Therefore, the Schmitt Premium cables do not break as quickly as those from mass production.
Schmitt cables for classic vehicles are manufactured in the same design as it was standard at the time of production of the vehicles. Thus, for all fans of classic vehicles, a cable true to the original is used here. Since an inner cable manufactured in the old way tends to rust, it is lubricated with an Interflon high-performance fluid grease for life.
OEM number for comparison purposes only: 910.8.04.001.2
