Schmitt Premium cables are manufactured true to the original in Austria: Absolutely accurate fit and handmade in the highest quality. Fast machine manufacturing processes to save costs are deliberately not used here.
The inner cables are made from special cable steel (and not from the today mostly used brittle stainless steel). Therefore, the Schmitt Premium cables do not break as quickly as those from mass production.
Schmitt cables for classic vehicles are manufactured in the same design as it was standard at the time of production of the vehicles. Thus, for all fans of classic vehicles, a cable true to the original is used here. Since an inner cable manufactured in the old way tends to rust, it is lubricated with an Interflon high-performance fluid grease for life.

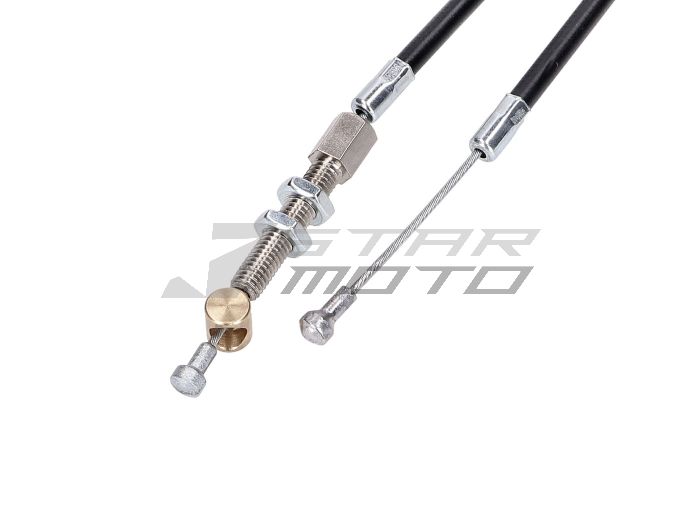

This Schmitt front brake cable fits Puch Maxi 1-speed, 2-speed and X30 / Sprinter with adjuster at the wheel hub. OEM number for comparison purposes only: 910.3.12.001.0
Dimensions:
Overall length: 101cm Sheath length (incl. caps): 89.5cm Stranded wire diameter: 1.5mm Sheath diameter: 5mm
End cap length: 12mm End cap diameter: 6mm
Graded nipple diameter, ball: 6mm head, 3.5mm neck Graded nipple length, ball: 11mm
Nipple attachment diameter, cylindrical: 8mm Nipple attachment length, cylindrical: 9mm
Threaded bolt length (with hexagonal adjusting screw): 40mm Thread length: 29mm Nut: M6
The inner cables are made from special cable steel (and not from the today mostly used brittle stainless steel). Therefore, the Schmitt Premium cables do not break as quickly as those from mass production.
Schmitt cables for classic vehicles are manufactured in the same design as it was standard at the time of production of the vehicles. Thus, for all fans of classic vehicles, a cable true to the original is used here. Since an inner cable manufactured in the old way tends to rust, it is lubricated with an Interflon high-performance fluid grease for life.
This Schmitt front brake cable fits Puch Maxi 1-speed, 2-speed and X30 / Sprinter with adjuster at the wheel hub. OEM number for comparison purposes only: 910.3.12.001.0
