CAMS 475GEAR 99-06TC

475 Cam Kit

• Camshaft gear drive kits increase valve timing accuracy by eliminating timing chain lash and loosely-fit stock chain drive
• Reverses the rear cam's direction of rotation, providing additional operating clearance between cam lobes; as a result, higher cam lifts are possible with the gear drive kit

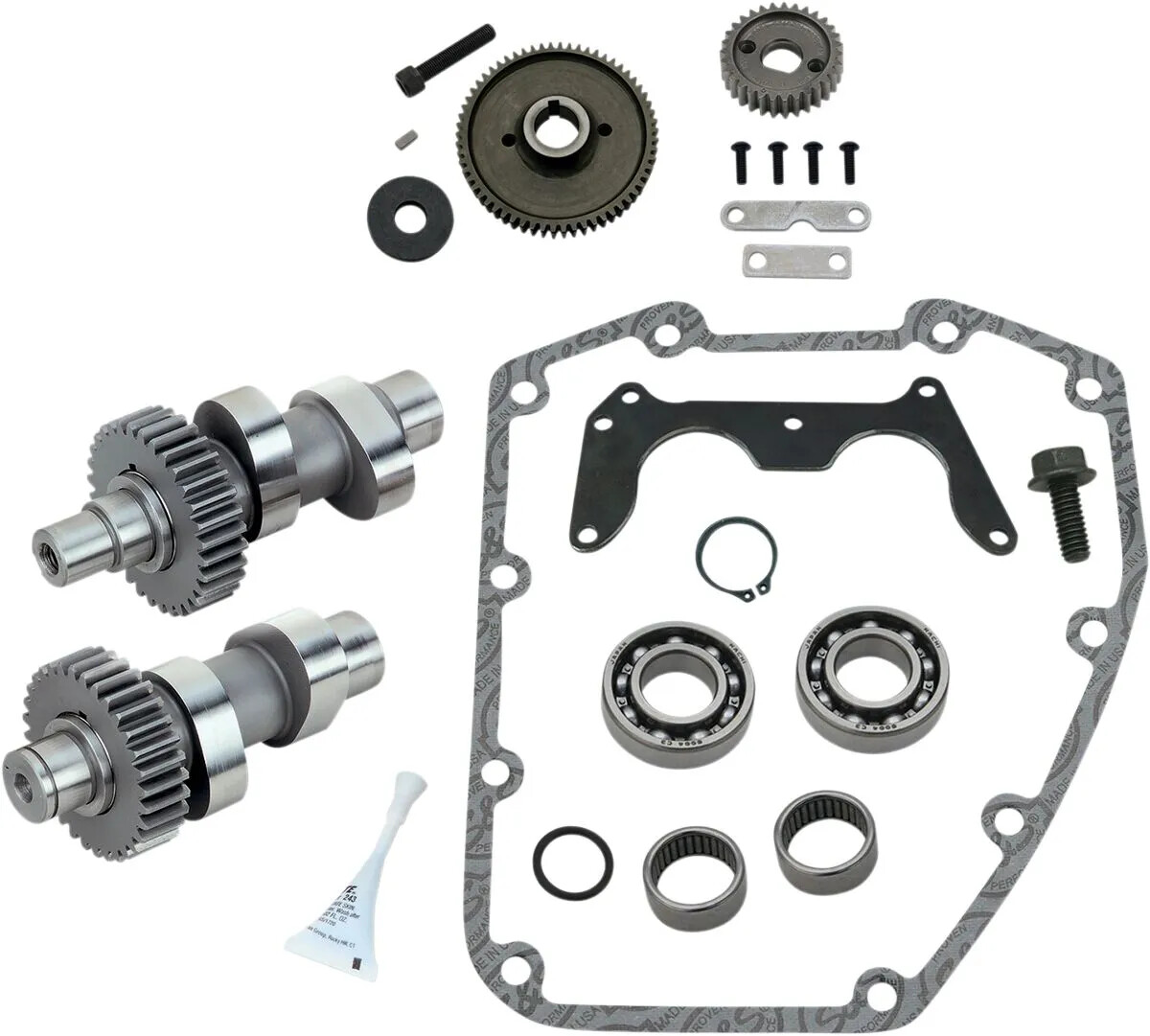

• Kits include cams, inner gears, outer drive gears, inner and outer bearings, gasket and instructions
• Material must be removed from the inner surface of the stock gear cover to install S&S gear drive cams
• A hydraulic press and other professional-level tools are required to install these kits
• Cam bearings and gaskets must be replaced when installing new cams
• Kits require high-performance valve springs when installed in 99-04 models.
• Installer must check coil bind, valve-to-valve clearance and valve-to-piston clearance.
• Due to the inherent characteristics of gear drives, you may experience more valve train noise.
• Original equipment specifications
• Bolt-in cam with stock cam timing
• Does not require tuning
• Installer must check coil bind, valve-to-valve clearance and valve-to-piston clearance.
• Made in the U.S.A.

NOTE: Exempt per Carb Executive Order (E.O.) #D-355-14 for all models

COLOR/FINISH	Chrome
APPLICATION	Exhaust| Intake
TYPE	Gear
UNITS	Kit
PRODUCT NAME	Camchest Kit
GRIND	475G
