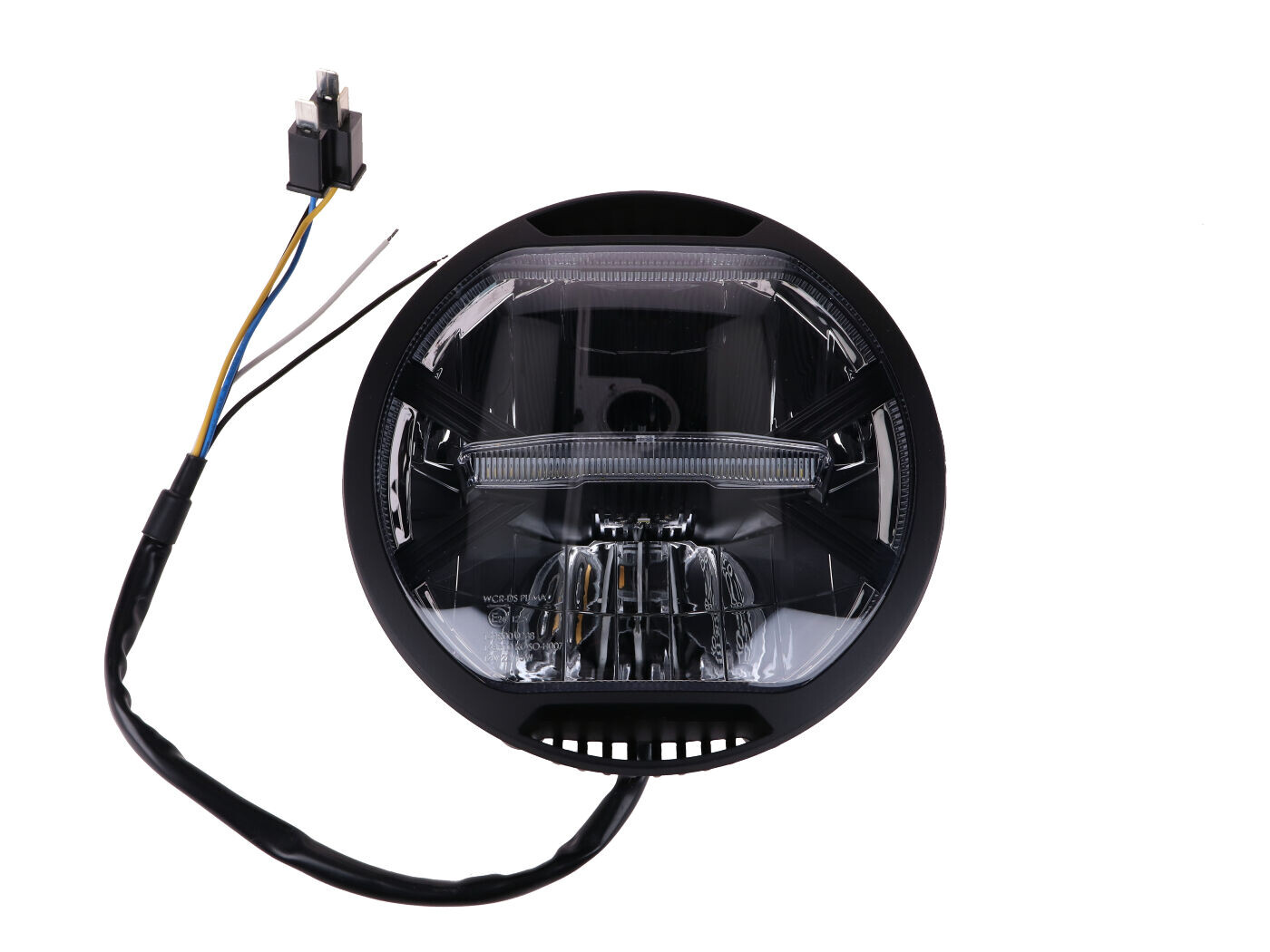

KOSO LED main headlight THUNDERBOLT II LED with parking light strips.
The black matte futuristic LED main headlight with its horizontal parking light strip in the middle has a very flat aluminum housing with just 85mm depth. Its cooling fins on the back provide sufficient cooling of the modern LED elements. Mounting on the vehicle is possible via various screw points on the lamp housing. Here are provided on the back 6x M6x1 and laterally 2x M8x1.25 threaded holes. The connection cable is used to switch the parking light, driving light and high beam. A H4 adapter plug is already clamped. Only the LED parking light strip must be assigned over 2 cables itself. With an outer diameter of 170mm fits the KOSO Thunderbolt on many scramblers, café racers, enduro, naked bikes and could be the eye-catcher in a restomod. The illumination and brightness meets the requirements of road traffic regulations and is described by the manufacturer as very good.
Technical data:Housing diameter: Ã170 mm . Depth: 84 mm (86 mm with glass) Distance mounting hole (center) to end of housing: approx. 48mm
Connectors:3-pin combo plug yellow = low beam (+) blue = high (+) black = ground (-)
Extra cable:white = position light (+) black = ground (-)
Power:dipped beam: 15 watts High beam: 22 watts Standlight: 5 W
The black matte futuristic LED main headlight with its horizontal parking light strip in the middle has a very flat aluminum housing with just 85mm depth. Its cooling fins on the back provide sufficient cooling of the modern LED elements. Mounting on the vehicle is possible via various screw points on the lamp housing. Here are provided on the back 6x M6x1 and laterally 2x M8x1.25 threaded holes. The connection cable is used to switch the parking light, driving light and high beam. A H4 adapter plug is already clamped. Only the LED parking light strip must be assigned over 2 cables itself. With an outer diameter of 170mm fits the KOSO Thunderbolt on many scramblers, café racers, enduro, naked bikes and could be the eye-catcher in a restomod. The illumination and brightness meets the requirements of road traffic regulations and is described by the manufacturer as very good.
Technical data:
Connectors:
Extra cable:
Power:
The product has a registration number valid within the territory of the European Union.
