SHOCK 465 FL/FX 12.2

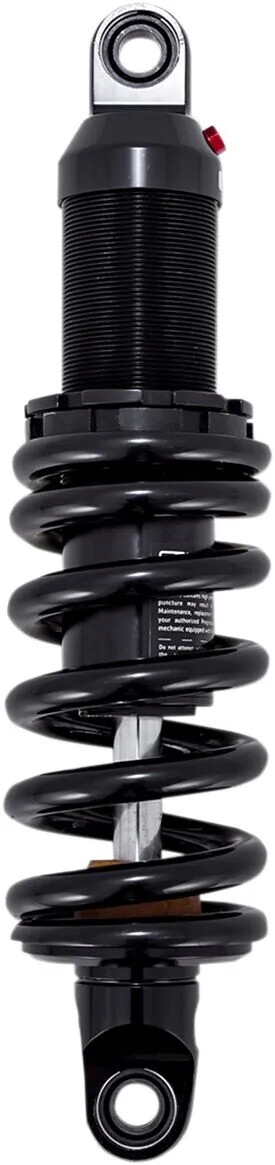

465 Series Shock for Softails

• High-pressure gas monotube design for the ultimate performance
• Five-position rebound adjustment to tailor the suspension for changing conditions and riding styles
• Threaded shock body with a wide range of adjustment to fine-tune preload and sag
• Hard anodized aluminum body and components for excellent durability and corrosion resistance
• 46 mm bore and deflective disc piston provides precise damping
• 16 mm hard chrome shaft rides on custom viton seals for low friction and leak-free reliability
• Each shock is custom tuned (damping and spring rate) for each fitment
• Remote Adjustable Preload (RAP) option features remote hydraulic adjuster to make easier to fine-tune suspension for different loads, passengers or luggage
• Before purchasing or attempting to install shocks that are different than the OEM length, confirm that your wheel travel can be altered without causing clearance issues such as swingarm/axle to exhaust contact as well as chain/ belt guard or tire contact.
• Heavy Duty Applications are recommended for bikes operating at or near the manufacturer’s maximum load rating over 50% of the time.

The 465 Series R.A.P. (Remote Adjustable Preload) is a state of the art high pressure gas monotube shock design for the new Harley-Davidson M8 Softail models. It utilizes a large 46 mm bore with deflective disc damping, threaded body and a 5 position rebound adjuster. The beefy 16 mm hard chrome shaft rides on custom viton seals for a low friction and leak free life. Every shock includes a R.A.P. mounting bracket. Available in 12.20", 12.60", 13.10" & 13.50" shock lengths in a Standard and Heavy Duty spring rate for M8 Softail Models. Each shock is hand-built, tuned and dyno’d in our facility in California and come with a Lifetime Warranty.

BORE SIZE	46,00 mm (1,81")
COLOR/FINISH	Anodized| Black
MATERIAL	Aluminum
MODEL	465 Series
TYPE	Coilover Monotube
UNITS	Each
PRODUCT NAME	Shock Absorber
MOUNTING POSITION	Rear
DUTY	Standard
HEIGHT ADJUSTMENT	Lowers 25,40 mm (1,00")| Lowers 50,80 mm (2,00")
DAMPING METHOD	Gas Charged
EXTENDED LENGTH	309,88 mm (12,20")
SPRING TYPE	Single Progressive Rate
ADJUSTMENT TYPE	Threaded Preload Adjustable
RESERVOIR LOCATION	Internal
