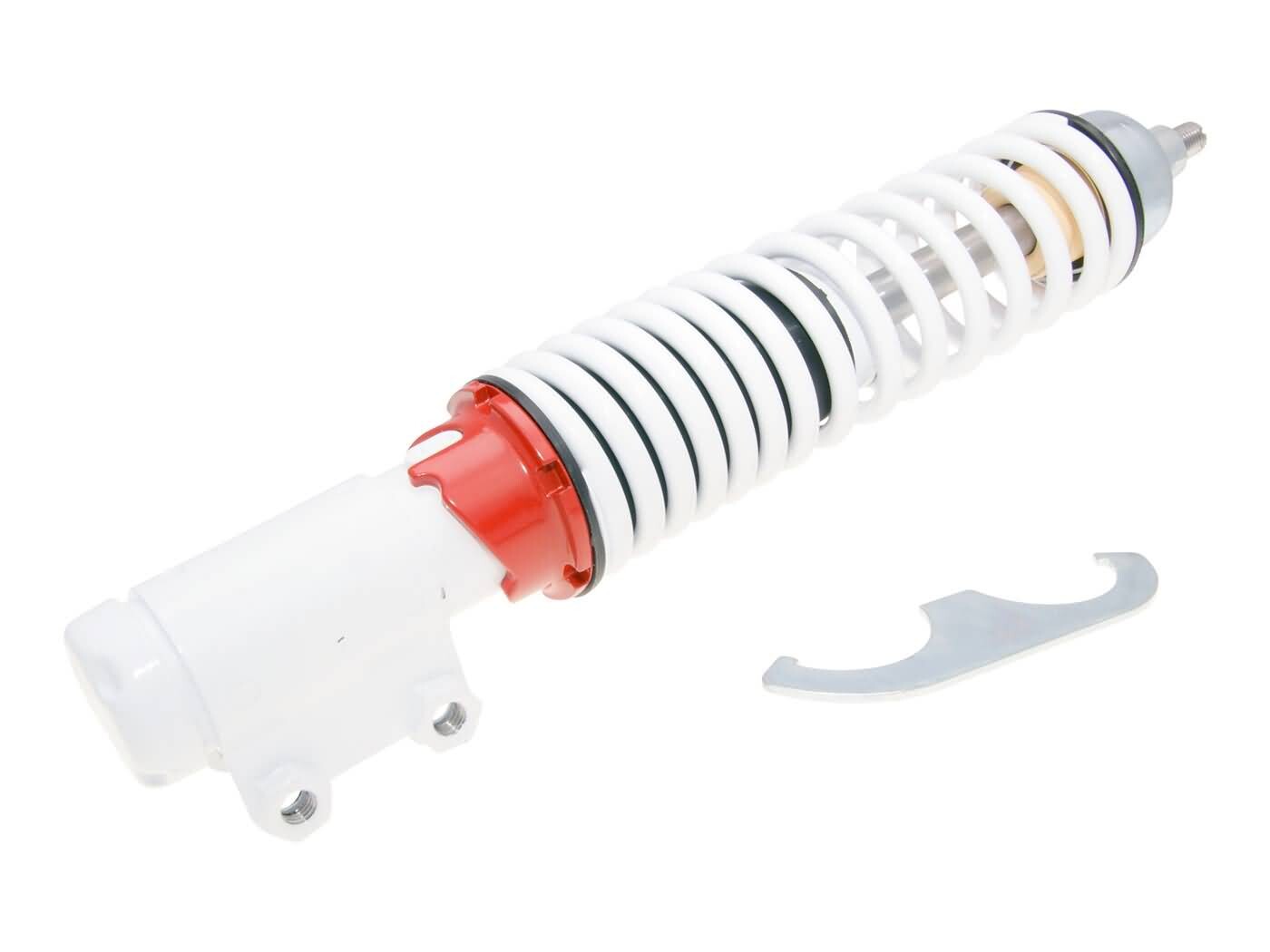

White sports shock absorbers from Carbone with white springs for 125, 150 and 300cc Vespa GTS Super Sport scooters. The shock absorbers from the Carbone sport series are equipped with larger shock cartridges and reinforced springs (3-way adjustable preload). This results in significantly better ride quality and makes them good all-round Struts. Made in Italy.
Technical data:
Length: 270mm. Spring preload: 3-way adjustable. Damping system: Double effect shock absorber with oil and gas.
Important note:

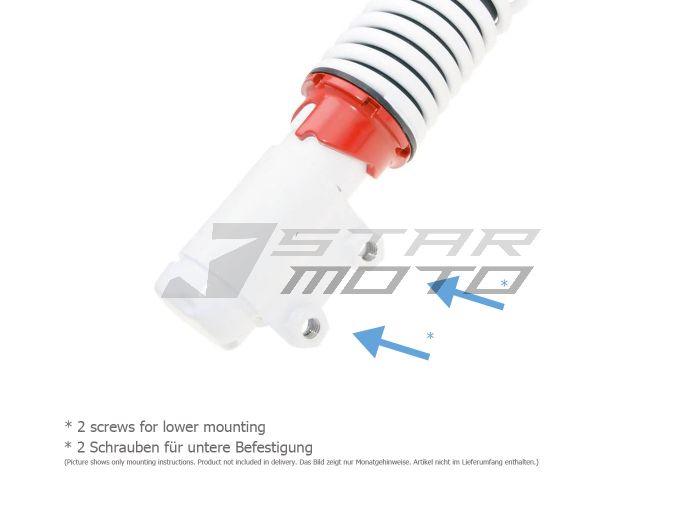

For the models listed below, Vespa uses two different types of shock absorbers, which can only be roughly classified into certain years of construction (mostly 2014-2016). These differ in the lower attachment and are therefore easy to identify. Either these are mounted with two screws or one screw. Before ordering, it should be checked on the vehicle whether the front damper is fixed with one or two screws. The shock absorber listed here uses two mounting screws.
The following models must be checked for the type of front shock absorber:
Vespa GTS 125 ie Super 4V ABS/ o. ABS 09-16 E3 [ZAPM4530] Vespa GTS 250 ie 4V E3 05-16 [ZAPM45100] Vespa GTS 300 ie 4V ABS/ o. ABS 12-16 E3 (Europe) [ZAPM45200/ ZAPM45202] Vespa GTS 300 ie 4V ABS 14-18 E3-E4 [ZAPM459L/ ZAPMA39L]
Vespa GTS 300 ie Super 4V ABS/ o. ABS E3 08-16 [ZAPM45200/ 202] Vespa GTS 300 ie Super 4V ABS E3-E4 14-18 [ZAPM459L/ ZAPMA39L]
Vespa GTV 300 ie Touring 4V E3 10-16 [ZAPM459L]
For all other vehicles listed, this shock absorber will fit without prior checking.
Technical data:
Important note:
For the models listed below, Vespa uses two different types of shock absorbers, which can only be roughly classified into certain years of construction (mostly 2014-2016). These differ in the lower attachment and are therefore easy to identify. Either these are mounted with two screws or one screw. Before ordering, it should be checked on the vehicle whether the front damper is fixed with one or two screws. The shock absorber listed here uses two mounting screws.
The following models must be checked for the type of front shock absorber:
For all other vehicles listed, this shock absorber will fit without prior checking.
