High quality Top Racing connecting rod repair kit for crankshaft with 12mm gudgeon pin suitable for all Puch engines.
Dimensions:

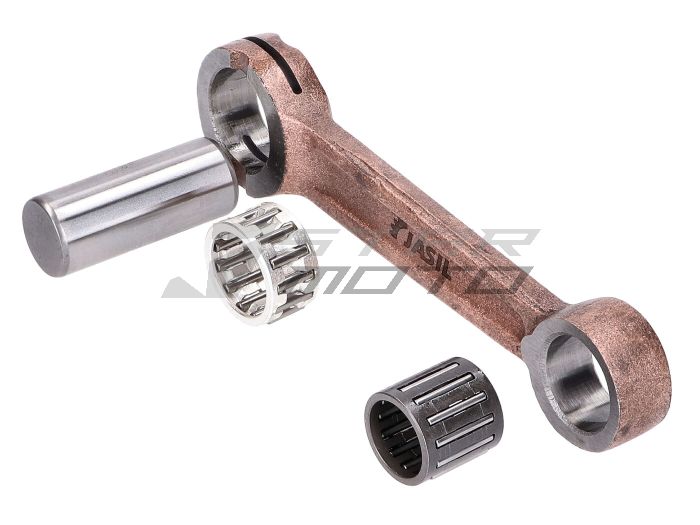

Scope of delivery as shown on the product picture. A conrod repair set is delivered.
Dimensions:
- Conrod bolt dimension: Ã14 x 34mm
- Conrod length (centre to centre): 90mm
- Conrod overall length: 114.5mm
- Thickness: 10mm
- Lower conrod eye outer diameter: 24.6mm
- Upper conrod eye outer diameter: 20.9mm
- Lower needle bearing (silver cage): Ã18 / 14 x 9.75mm
- Upper needle bearing: Ã15 / 12 x 14.7mm
Scope of delivery as shown on the product picture. A conrod repair set is delivered.
