cylinder kit 50cc cast iron for Peugeot 50cc i.e. 2T AC horizontal Euro4 2018-

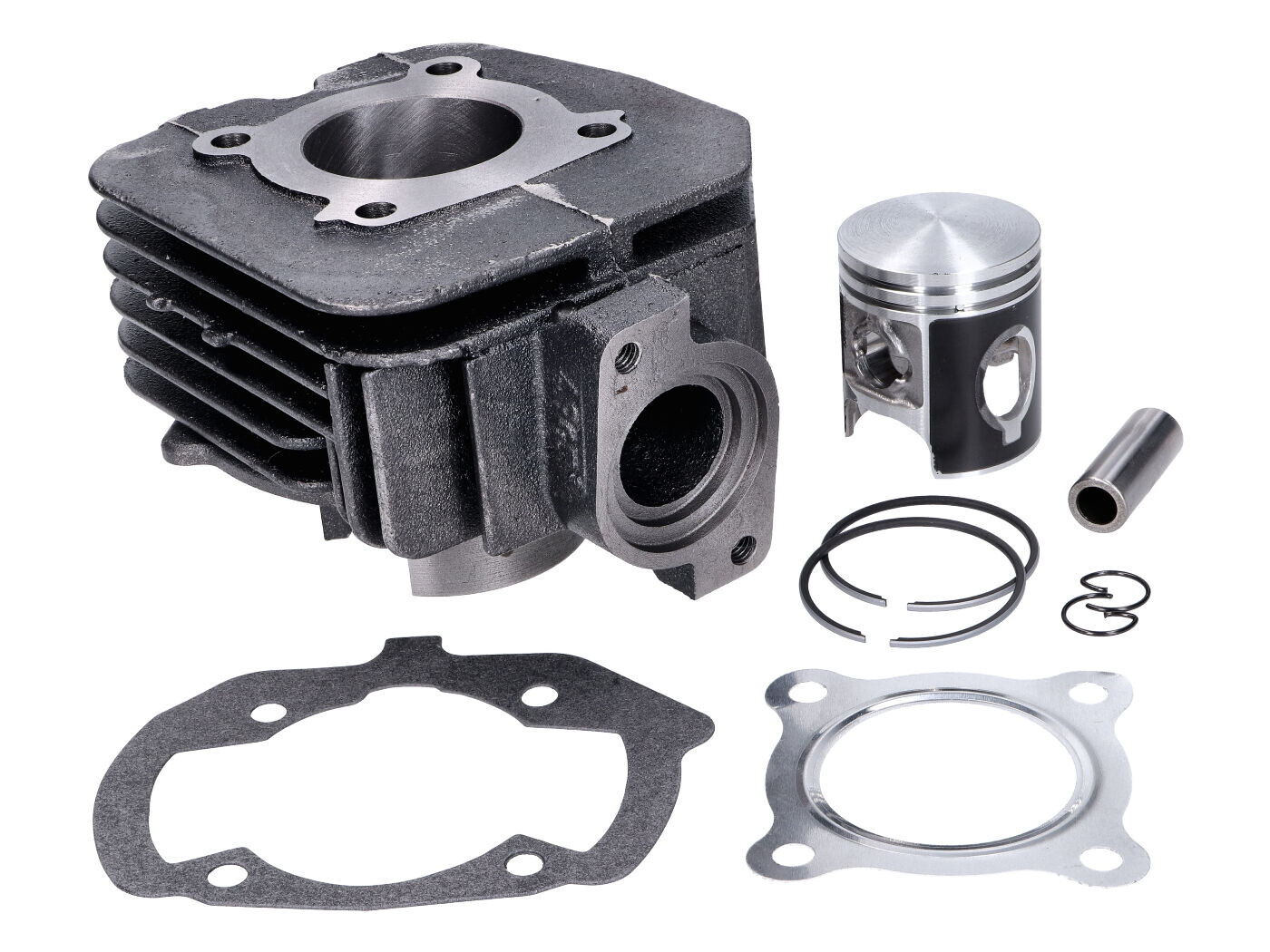

Cylinder kit 50cc cast iron suitable for Peugeot scooters with 50cc i.e. injection 2-stroke AC horizontal with Euro4 emission standard built from 2018 up to 2020. Delivery includes the piston with 12mm piston pin, piston rings, piston pin clips and the matching cylinder head and cylinder base gasket. The kit is supplied without cylinder head!

Bore (diameter): 39.93mm

Stroke: 39.8mm

Displacement: 49.8cc

Piston pin: 12mm

Also suitable for:

Peugeot Citystar 50 i.e. AC 2T E4 2018-2021 (VGAH3AABC)

Peugeot Django 50 i.e. AC 2T E4 2018-2020 (VGAM1ACJ)

Peugeot Kisbee 50 i.e. AC 2T E4 2018-2020 (VGAK1AEJA)

Peugeot Speedfight 4 50 i.e. AC 2T E4 2018-2020 (VGAF1AAJA)

Peugeot Streetzone 50 i.e. AC 2T E4 2018-2020 (VGAK1AEKA)

Peugeot Streetzone Naked R10 50 i.e. AC 2T E4 2018-2020 (VGAK1AEKA)

Peugeot Streetzone Naked R12 50 i.e. AC 2T E4 2018-2020 (VGAK1AEKA
