ELECTRONIC FUSE BLOCK

ELECTRONIC FUSE BLOCK

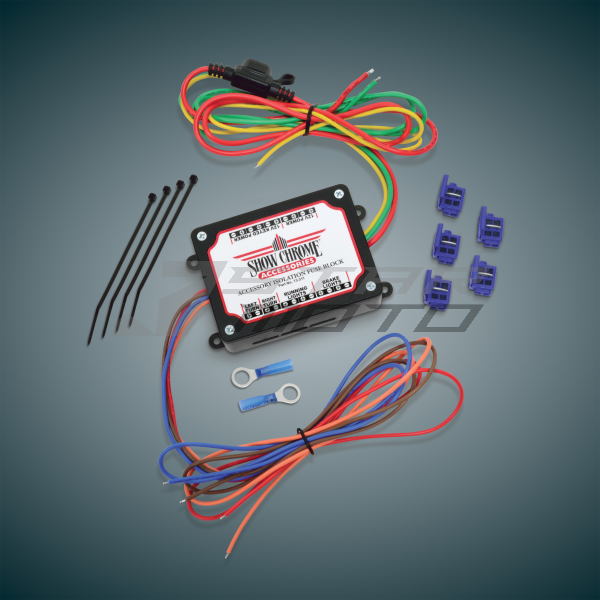

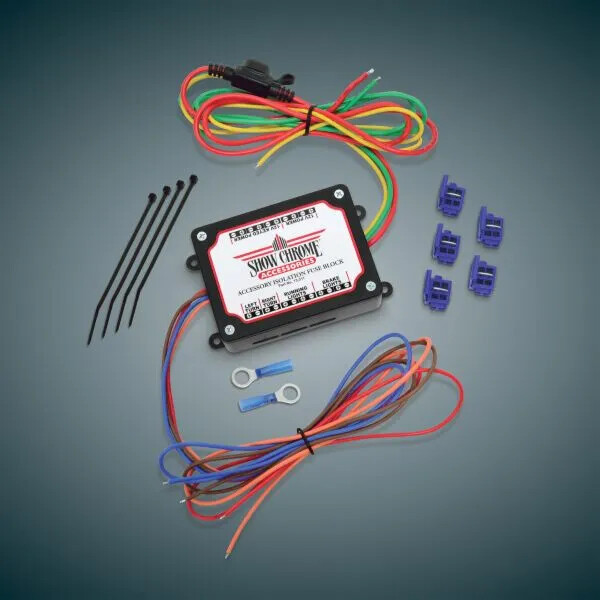

• Big Bike Parts delivers a game changer in the standard for electrical accessory connections on motorcycles with their new Electronic Fuse Block
• Designed with eleven terminal tie in points which are electronically protected by nine separate relays and fuses
• This fuse block is a compact 1 1/8’’ x 2 ¾’’ x 3 ¾’’ which easily mounts to the battery, eliminating all other direct battery connection needs and making accessory connection a breeze
• The bike’s electrical system is protected by a 20 amp fuse and separate 30 amp relay to isolate all your electrical accessories from the bike’s electrical system
• Includes 3 keyed power connections, 2 always on power connections protected by a combination of 5 and 10 amp fuses
• Separate left and right turn signal connection terminals, 2 running light and 2 brake light terminal blocks, all protected by four 8 amp 277 volt automatic switch relays for complete isolation
• This universal wiring accessory is a must have when adding electrical accessories to today’s modern electronic oriented bikes
