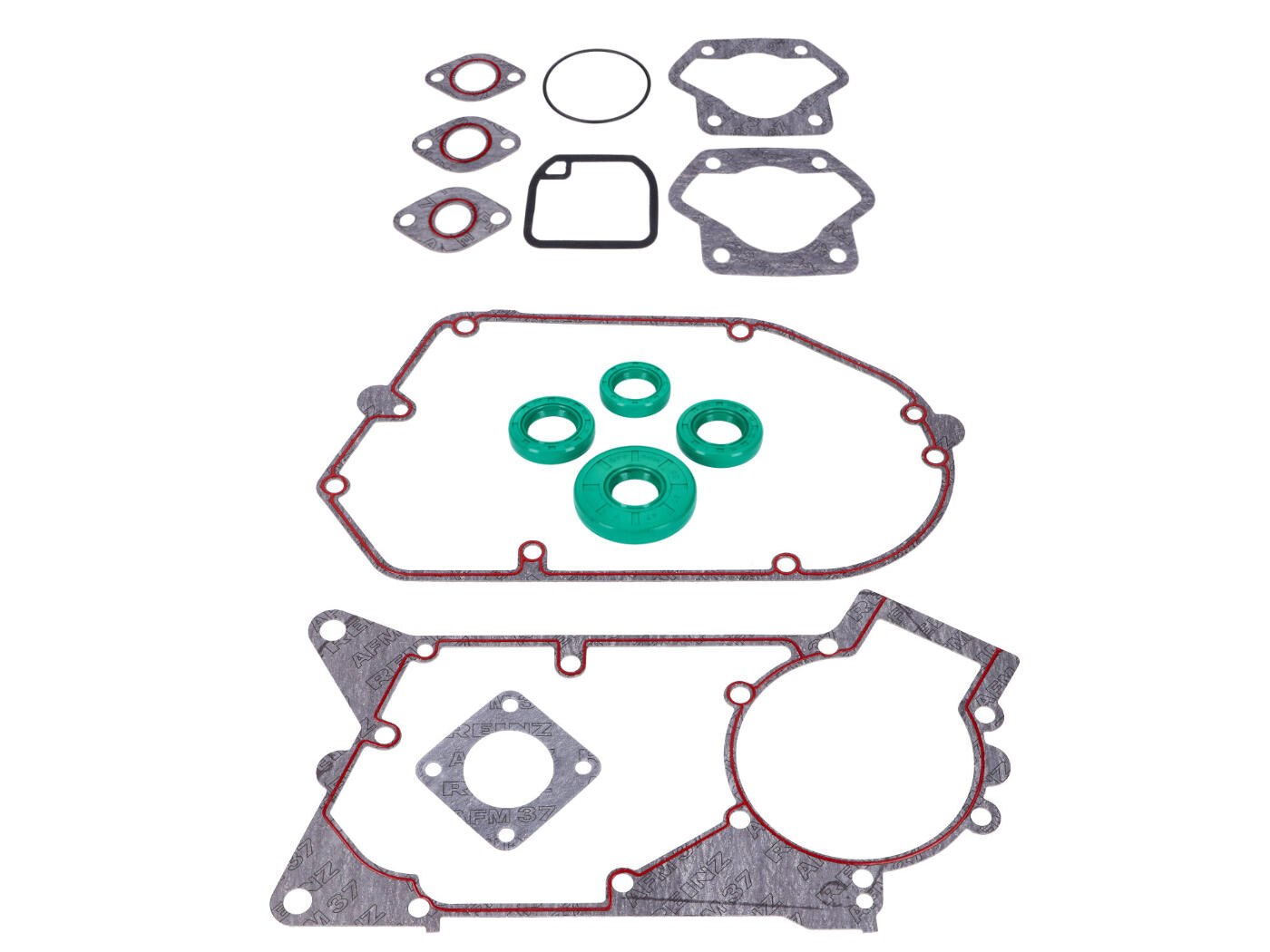

Engine gasket set Schmitt Plus made of AFM37 sealing paper with sealing lip on both sides of 1mm wide silicone incl. Schmitt FKM oil seals suitable for Simson S51, S53, SR50, KR51/2 M500 engine.
Made in Germany.
Schmitt abolishes regular sealant massacre on your workbench with this fuel and oil resistant set of gaskets. The double-sided silicone sealing lip conforms to the contour of the sealing surfaces when the engine halves are bolted together, compensating for small imperfections.
The shaft seals marked RD, LD and WD, respectively, are installed according to their direction of rotation, thus achieving maximum sealing and, at the same time, speed stability and service life. The incorporated "swirl" ensures permanent, targeted recirculation of lubricants to the bearing or shaft.
Due to their design, Schmitt shaft seals with return swirl achieve the best possible tightness even when the shaft is at a standstill. The material FKM selected here is characterized by excellent resistance to fuels and lubricants.
Scope of delivery:
Middle seal Transmission cover gasket Seal for sealing cap output 1 piece 1,5x16mm carburetor inlet gasket 1 piece 1,5x19mm carburetor inlet gasket 1 piece 1,5x21mm carburetor inlet gasket 1 piece 0.3mm paper (coated) 1 piece 0,5mm paper (coated) 1 piece FKM gasket carburetor sump for BVF carburetor 1 piece Schmitt cylinder head gasket for centering 1x Oil seal Schmitt FKM RD 20x30x7mm ASW (right hand twist) 1x oil seal Schmitt FKM LD 20x35x7mm ASW (left twist) 1x Oil Seal Schmitt FKM WD 22x35x7mm ASW (alternating twist) 1x Oil Seal Schmitt FKM RD 20x47x7mm ASW (right-hand twist)
Difference FPM, FKM, Viton®:
Behind the abbreviations or names mentioned is the identical basic material, namely fluororubber. FKM is the short form for fluoroelastomers according to the American standard ASTM. Whereas Viton® is a trademark of the company DuPont Performance Elastomers.
In our range, all fluororubber articles are designated with the abbreviation FKM.
Made in Germany.
Schmitt abolishes regular sealant massacre on your workbench with this fuel and oil resistant set of gaskets. The double-sided silicone sealing lip conforms to the contour of the sealing surfaces when the engine halves are bolted together, compensating for small imperfections.
The shaft seals marked RD, LD and WD, respectively, are installed according to their direction of rotation, thus achieving maximum sealing and, at the same time, speed stability and service life. The incorporated "swirl" ensures permanent, targeted recirculation of lubricants to the bearing or shaft.
Due to their design, Schmitt shaft seals with return swirl achieve the best possible tightness even when the shaft is at a standstill. The material FKM selected here is characterized by excellent resistance to fuels and lubricants.
Scope of delivery:
Difference FPM, FKM, Viton®:
Behind the abbreviations or names mentioned is the identical basic material, namely fluororubber. FKM is the short form for fluoroelastomers according to the American standard ASTM. Whereas Viton® is a trademark of the company DuPont Performance Elastomers.
In our range, all fluororubber articles are designated with the abbreviation FKM.
