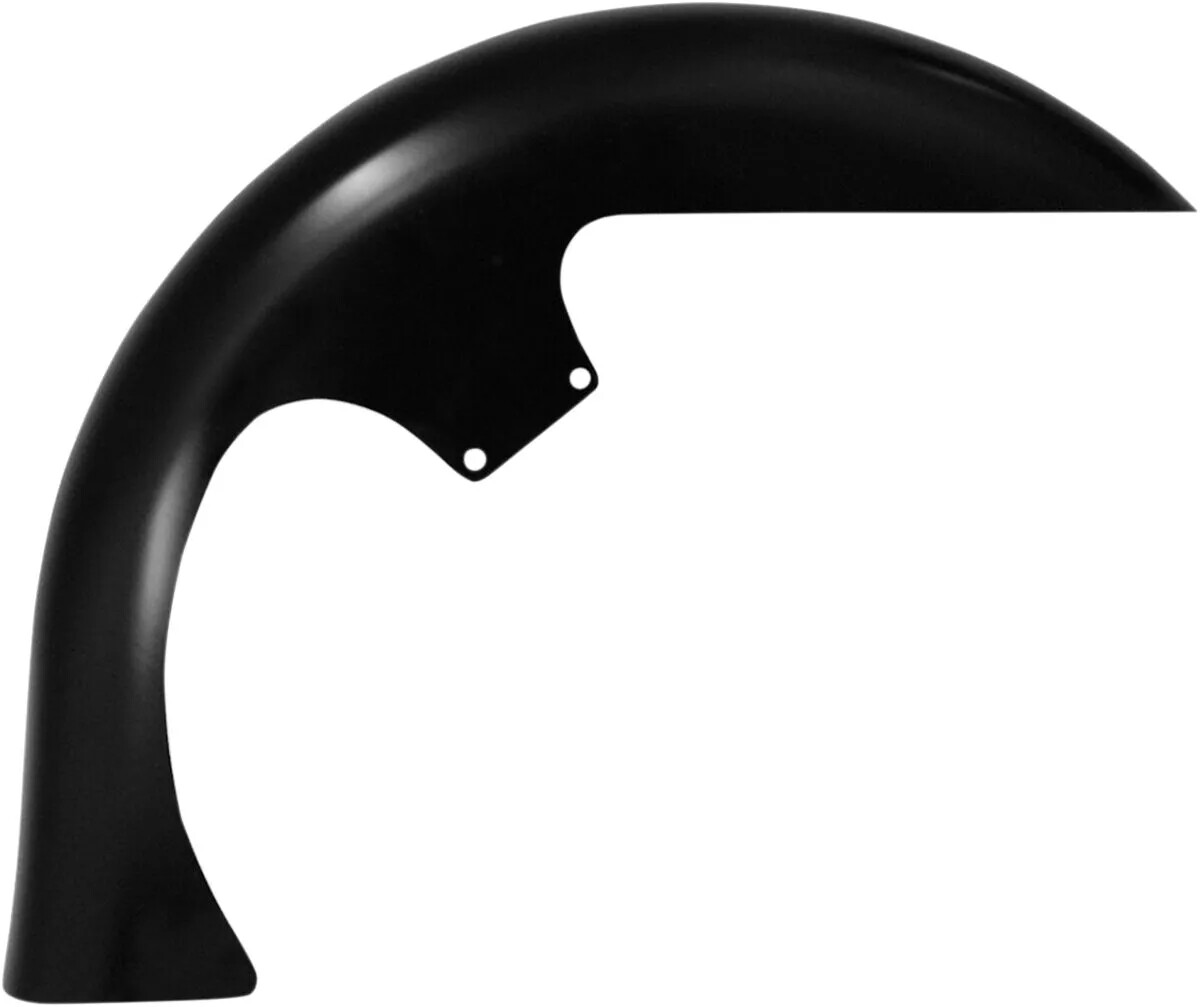

FENDER FT F/FRME LEVEL26

Tire Hugger Series Front Fenders for Dressers

• Steel fenders are thick enough to add rigidity to the front end by acting like a fork brace, but can still be cut or shaped enough for an even more Kustom appearance
• All fenders come pre-drilled and are stamped, not spun, to ensure a consistent finish while minimizing body work
• E-coated to prevent rust and corrosion
• Measures 6.5" outside width
• Kit includes zinc-plated mounting hardware
• Made in the U.S.A.

Requires mounting blocks part number 1410-0022 or 1410-0023.

COLOR/FINISH	Black
FENDER WIDTH	165,10 mm (6,50")
MATERIAL	Steel
MODEL	Tire Hugger
HEIGHT	375,00 mm (14,75")
STYLE	Level
TYPE	with Raked Frame
UNITS	Each
PRODUCT NAME	Fender
MOUNTING POSITION	Front
STRAIGHT LINE LENGTH	866,775 mm (34,125")
FOR WHEEL SIZE	660,40 mm (26,00")
CONTOUR LENGTH	1155,70 mm (45,50")
FOR FRAME	Raked
OUTSIDE MOUNTING WIDTH METRIC	171.45 mm
OUTSIDE MOUNTING WIDTH IMPERIAL	6.75"
OUTSIDE MOUNTING WIDTH	171,45 mm (6,75")
INSIDE MOUNTING WIDTH IMPERIAL	6.625"
FOR WHEEL SIZE METRIC	660.40 mm
INSIDE MOUNTING WIDTH	168,275 mm (6,625")
INSIDE MOUNTING WIDTH METRIC	168.275 mm
FOR WHEEL SIZE IMPERIAL	26.00"
BASE FINISH	E-Coating
