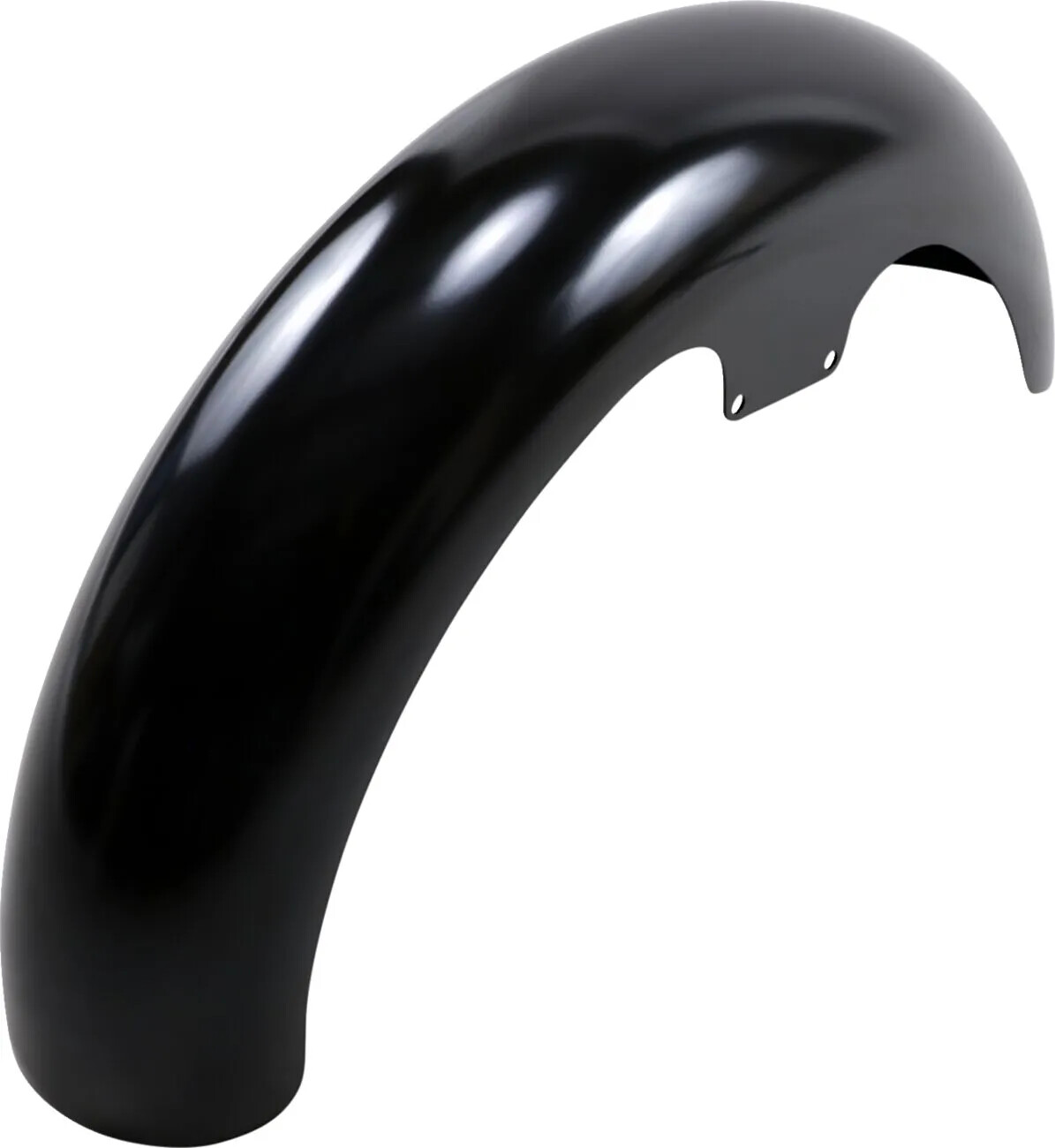

FENDER FT WRAPPER 18 FLST

Hugger Series Front Fender

• Steel fender is thick enough to add rigidity to the front end by acting like a fork brace, but can still be cut or shaped enough for an even more Kustom appearance
• Fenders come pre-drilled and are stamped, not spun, to ensure a consistent finish and minimize body work
• E-coated to prevent rust and corrosion
• Installation requires the use of Klock Werks Tire Hugger mounting blocks (sold separately)
• Made in the U.S.A.

Requires mounting blocks part number 1410-0033 or 1410-0034.

COLOR/FINISH	Black
FENDER WIDTH	158,75 mm (6,25")
MATERIAL	Steel
MODEL	Tire Hugger
HEIGHT	330,00 mm (13,00")
STYLE	Wrapper
UNITS	Each
PRODUCT NAME	Fender
MOUNTING POSITION	Front
STRAIGHT LINE LENGTH	692,00 mm (27,25")
FOR WHEEL SIZE	406,40 mm (16,00")| 431,80 mm (17,00")| 457,20 mm (18,00")| 482,60 mm (19,00")
CONTOUR LENGTH	1066,80 mm (42,00")
OUTSIDE MOUNTING WIDTH METRIC	157.1625 mm
OUTSIDE MOUNTING WIDTH IMPERIAL	6.1875"
OUTSIDE MOUNTING WIDTH	157,1625 mm (6,1875")
INSIDE MOUNTING WIDTH IMPERIAL	6.0625"
FOR WHEEL SIZE METRIC	406.40 mm| 431.80 mm| 457.20 mm| 482.60 mm
INSIDE MOUNTING WIDTH	153,9875 mm (6,0625")
INSIDE MOUNTING WIDTH METRIC	153.9875 mm
FOR WHEEL SIZE IMPERIAL	16.00"| 17.00"| 18.00"| 19.00"
BASE FINISH	E-Coating
