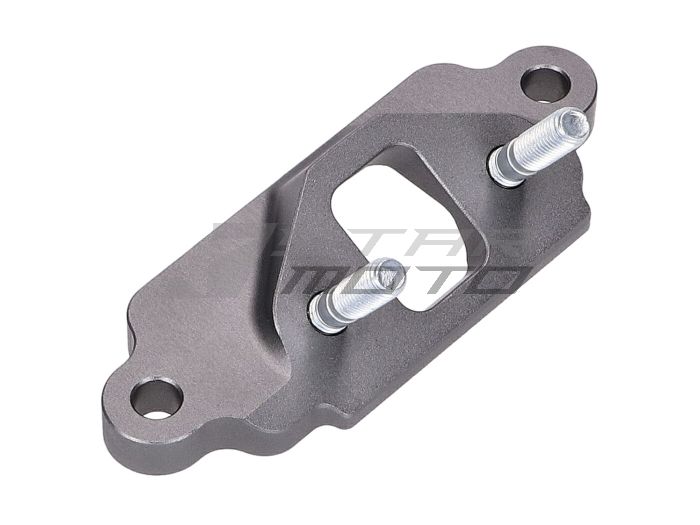

Intermediate flange / reed block for mounting a 17mm SSB carburettor. Made from CNC-machined aluminium with 18x14mm intake. The stud bolts are secured with Loctite.
This flange plate is suitable for Sachs 502, 50/2, 50/3, 50/4 mopeds and mopeds with reed intake.
Scope of delivery as shown on the product picture. An intermediate flange is supplied.
This flange plate is suitable for Sachs 502, 50/2, 50/3, 50/4 mopeds and mopeds with reed intake.
- Bore hole distance to the cylinder: 67mm
- Stud bolt distance: 31mm
- Thread: M5
Scope of delivery as shown on the product picture. An intermediate flange is supplied.
