Lenksud Biltwell Ty

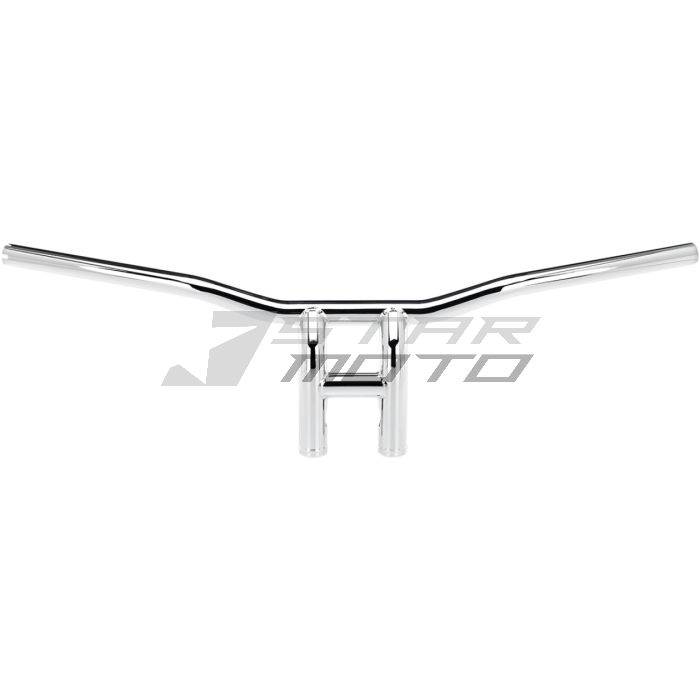

1" Throttle-By-Wire Handlebar

• Manufactured from 1" OD x 0.120” wall seamless 4130 chromoly tubing
• CNC-machined slots for internal cable routing
• All bends are created with internal mandrels on a CNC bender to reduce flat spots in the bends
• All welded joints are precision mitered and TIG welded
• Internal tube tapering on right bar to accept TBW module
• If grip sets aren't installed, bars will be 1-1/8" shorter than listed

Pullback models place handlebars 2" closer to the rider

CENTER WIDTH	88,9 mm (3-1/2")
COLOR/FINISH	Chrome
MATERIAL	Chromoly
PULLBACK/SWEEP	69,9 mm (2-3/4")
WIDTH	76 cm (30")
HEIGHT	20,5 cm (8")
END RISE	20,5 cm (8")
FEATURES	Notched for Throttle-By-Wire
RISE	20,5 cm (8")
HANDLEBAR DIAMETER	25,4 mm (1")
UNITS	Each
CLAMPING DIAMETER	25,4 mm (1")
CONTROLS DIAMETER	25,4 mm (1")
PRODUCT NAME	Handlebar
BASE COLOR	Silver
BASE FINISH	Chrome
