Carburetor with clamp fixation (direct mount) are used where the carburetor is directly mounted on a stiff intake manifold. This is necessary on stiff stock intake manifolds coming with the vehicle or on several tuning intake manifolds. Generally we show the sleeve diameter of the carb flange in the title of the carb. In addition, the connection widths for intake manifolds can be found on matching intake manifolds.

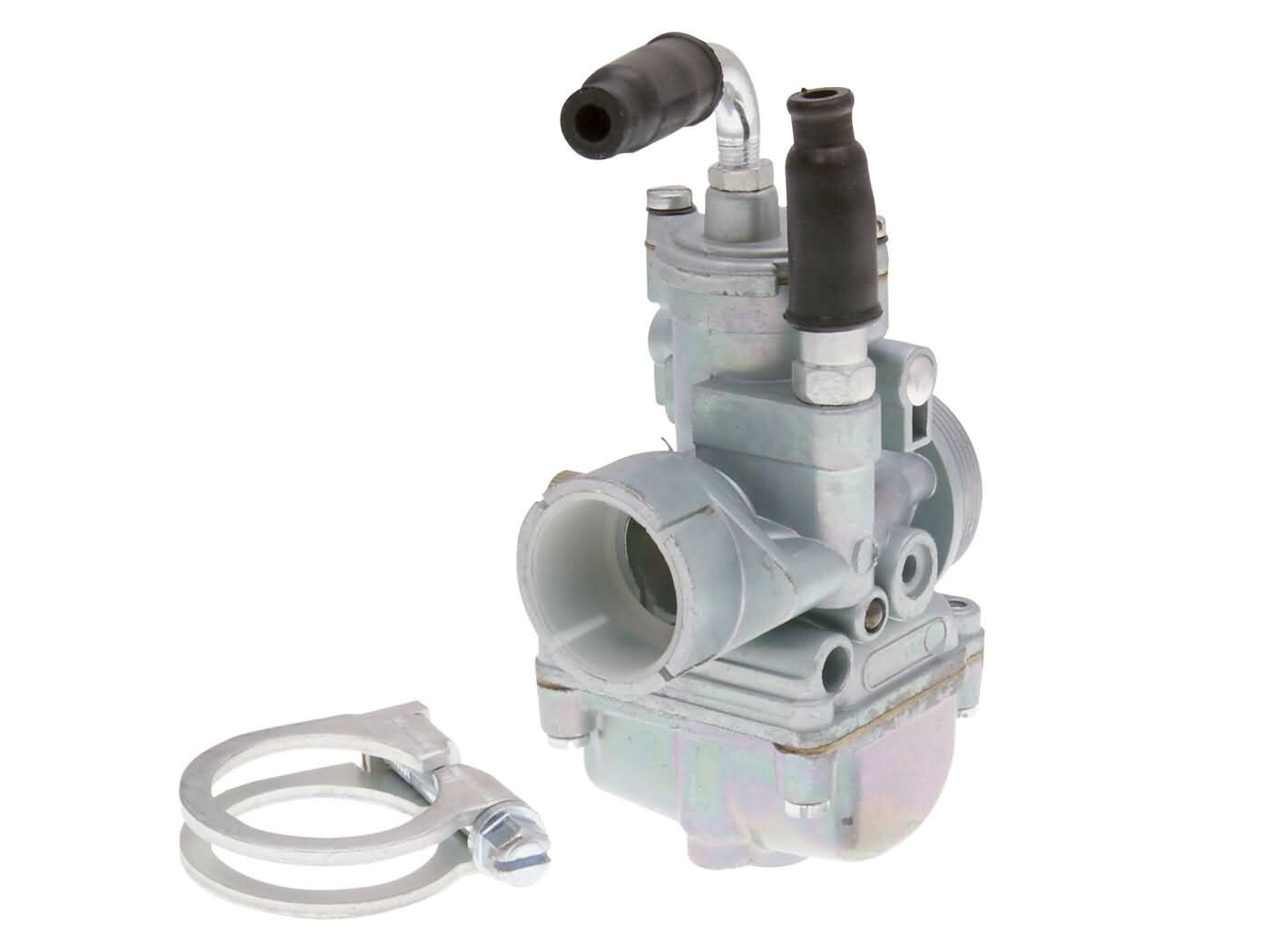

Well priced, good quality 17.5mm manual choke operated carb from Naraku.
A must have for tuned engines and in particular 70cc engines improving idle and acceleration issues.
Main Jet 82 (M5 Dellorto PHBG)
Idle 55
Intake Diameter: 24mm
Outlet/Air Filter Diameter: 32mm
Oil Connection - No Oil Feed (for pre-mix only)
Choke: Manual Choke Operation
Well priced, good quality 17.5mm manual choke operated carb from Naraku.
A must have for tuned engines and in particular 70cc engines improving idle and acceleration issues.
Main Jet 82 (M5 Dellorto PHBG)
Idle 55
Intake Diameter: 24mm
Outlet/Air Filter Diameter: 32mm
Oil Connection - No Oil Feed (for pre-mix only)
Choke: Manual Choke Operation
