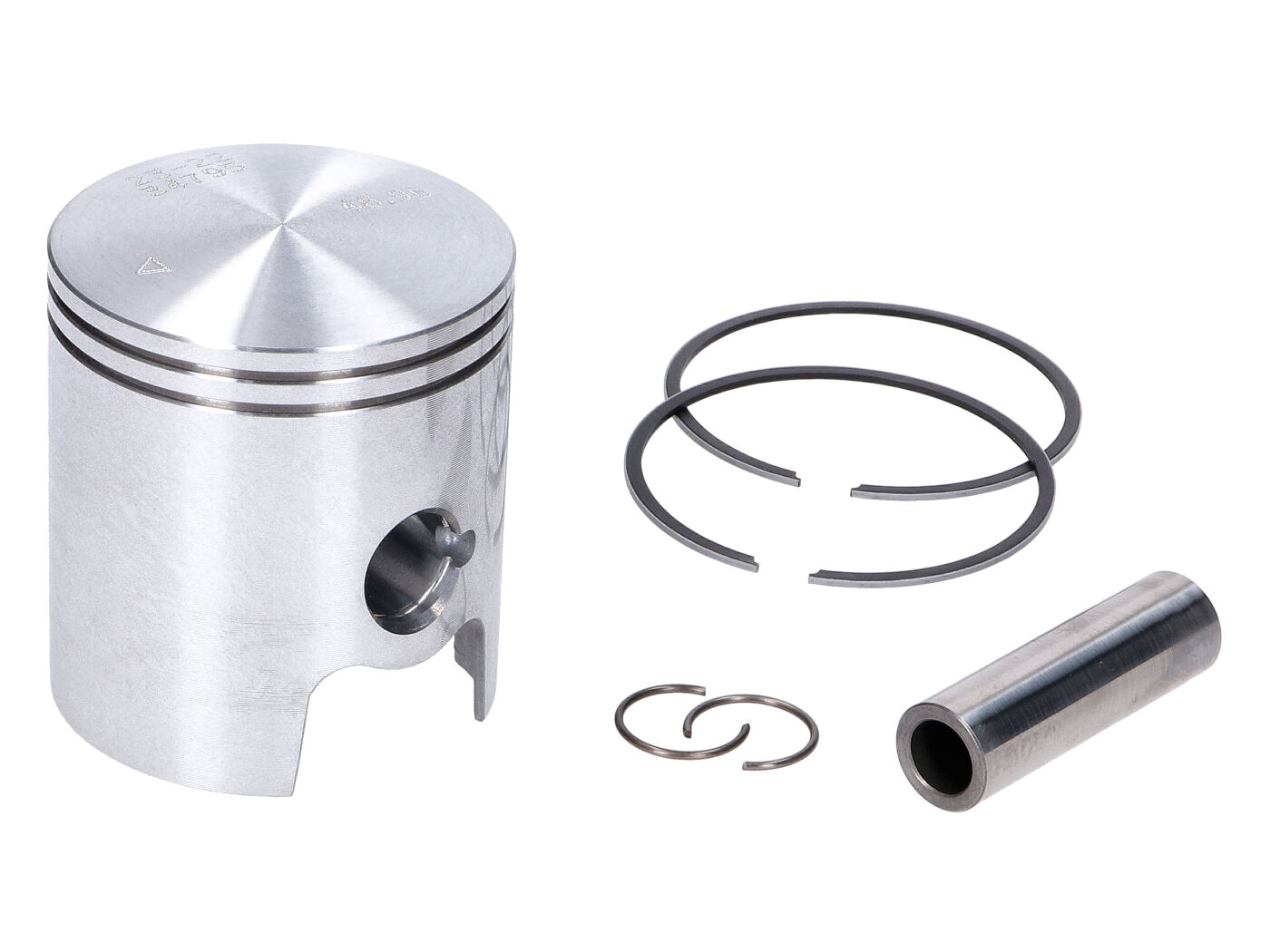

Schmitt piston kit from the Italian premium manufacturer VERTEX suitable for Simson moped with M500 engine.
VERTEX is an Italian piston manufacturer with a long tradition, which manufactures to the highest quality standards. VERTEX pistons are used by well-known brands such as KTM as original equipment pistons. As performance pistons in accessories or high-end VERTEX is the first choice.
. Technical data:
Diameter 46.96mm Piston pin 12mm Compression height 27.3mm Total height 53mm
Technical specifications:completely new design specifically for Simson engines different nominal dimensions Two 1mm piston rings with hard chrome plating Aluminum alloy with 18% silicon content 12mm piston pin Additional lubrication holes for the piston pin suitable for C-clips or G-clips (C-clips included) balanced weight distribution rounded piston ring pins (for less wear at the piston ring joint) usable with or without thrust washers (also for bottom guided crankshafts)
VERTEX is an Italian piston manufacturer with a long tradition, which manufactures to the highest quality standards. VERTEX pistons are used by well-known brands such as KTM as original equipment pistons. As performance pistons in accessories or high-end VERTEX is the first choice.
. Technical data:
Technical specifications:
