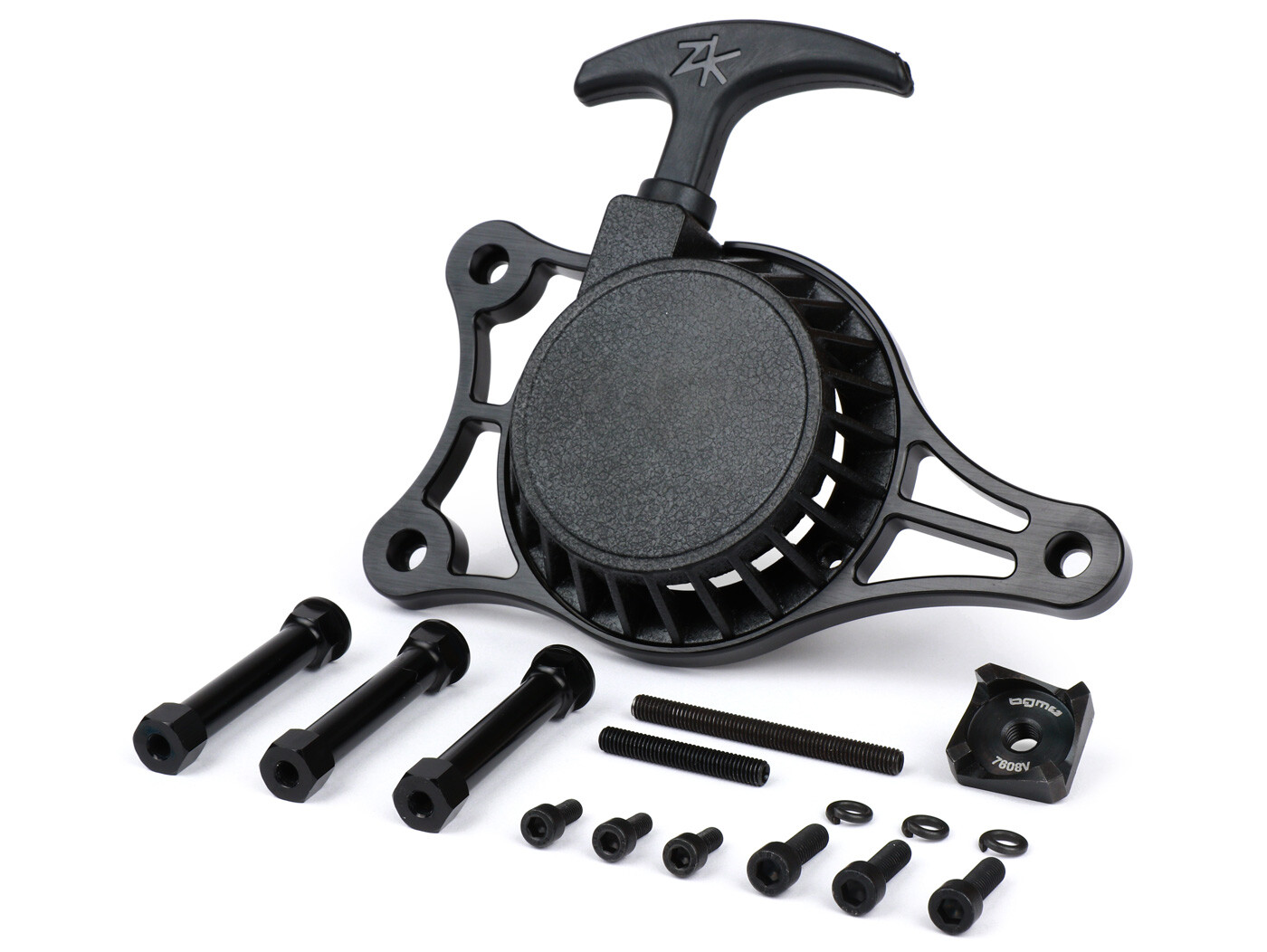

The BGM cable starter kit is CNC machined from high quality aluminum and black anodized.
The kit consists of:
Base plate for cable starter
3 stud bolts
Steel scanning nut with thread M8x1,25 (Vario)
with a weight of only approx. 26gr
3 black coated M6x20 screws
3 black coated M6 lock washers
3 black coated M5x12 screws
1 threaded bolt for original Piaggio or Malossi crankcase
1 threaded bolt for Polini Speedengine or Evolutionengine
1 cable starter with black cast aluminum housing
The studs are mounted so that the collar is against the frame.
Depending on the side panel used, the bolt can simply be placed under a body washer to provide sufficient clearance.
The pull starter is attached to the base plate with the three M5 bolts.
The three M6 bolts with lock washers are used to secure the base plate to the previously installed studs.
The pull starter nuts are available in 3 versions:
M8 for Mono -> 50760
M10 for Vario -> 51225
M10 for Mono -> 50746
