SHOCKS REVO 09+TRI HVYD

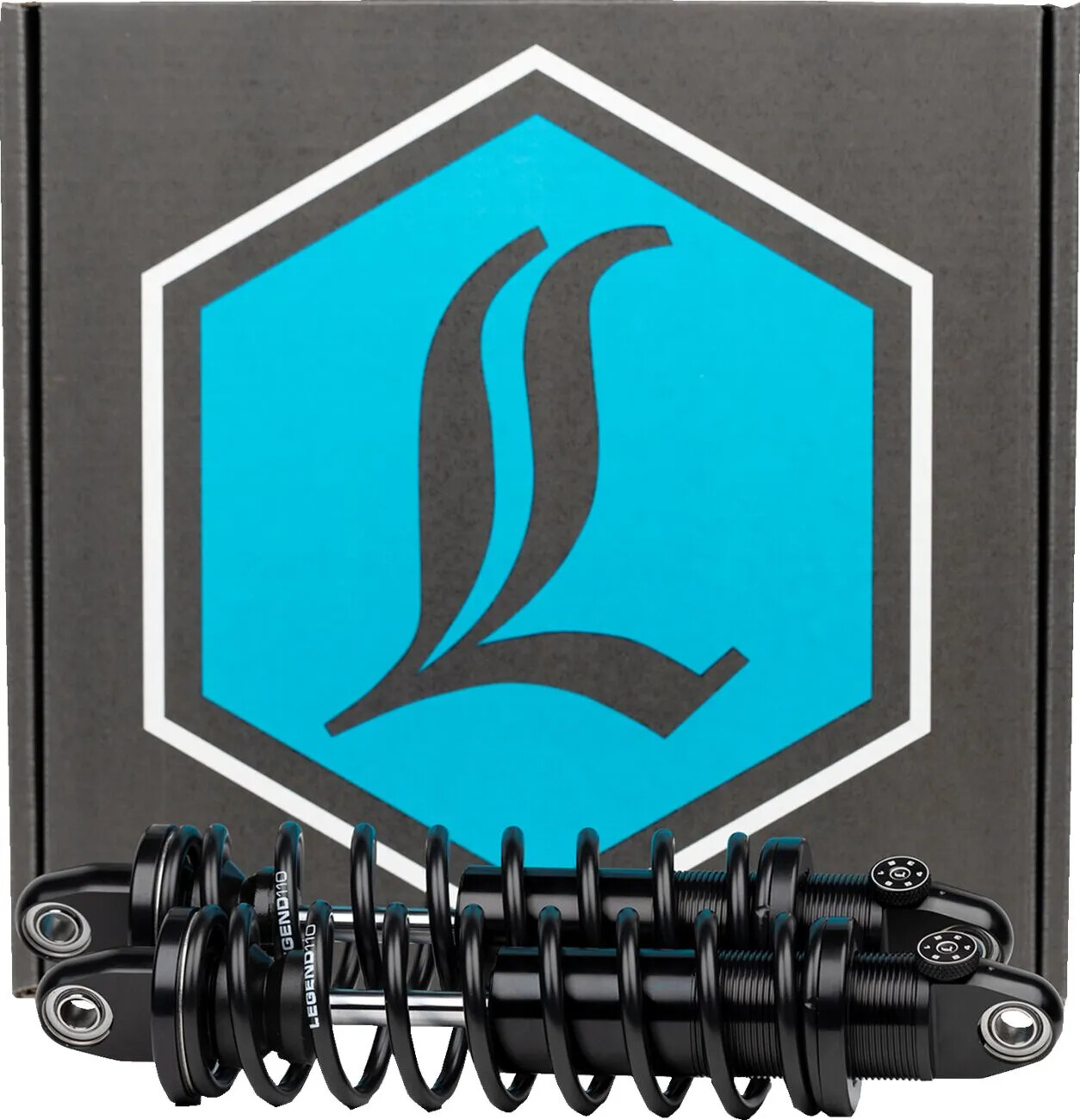

REVO-A Heavy-Duty Tri-Glide Shock

• Provide improved plush ride quality, control and resistance to bottoming-out
• Extended coil length has larger “sweet spot” without increasing overall shock length
• Unique spring rate offers the ability to soften pre-load, reducing ride height and maintaining a smooth ride
• Allow minimal pre-load adjustments when changing between riders’ weights or loads
• Adjust by hand, no tools needed
• 13” heavy-duty application
• Spherical bearings on both the top and bottom provide easy installation and alignment
• Six external knob adjustments for fine-tuning of rebound
• Provides optimum rebound performance for any given rider weight, personal ride quality preference or personal riding style
• Backed by Lifetime Warranty
• Made in the U.S.A.
• Heavy-duty applications are recommended for 500 lb.+ rider and passenger total weight.
• Part Number 1313-0158 and 1313-0120 are available for optional lowering brackets.

Tri-Glide lift bracket Part Number 1313-0120 recommended for '09-'16. Tri-Glide lift bracket Part Number 1313-0158 recommended for '17-'21.

COLOR/FINISH	Anodized| Black
MATERIAL	Aluminum
MODEL	Revo-A
TYPE	Coilover Twin-Tube
UNITS	Pair
PRODUCT NAME	Shock Absorber
MOUNTING POSITION	Rear
DUTY	Heavy Duty
EXTENDED LENGTH	330,00 mm (13,00")
ADJUSTMENT TYPE	Adjustable Rebound Damping
RESERVOIR LOCATION	Internal
